SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Upper Oven, Optional


04 - Lower Oven

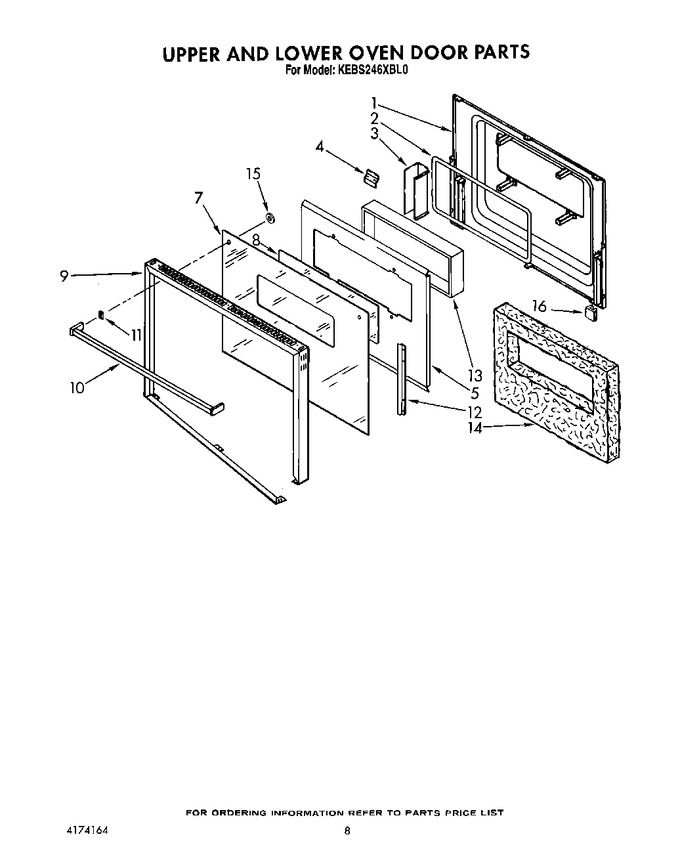

05 - Upper And Lower Oven Door


06 - Unit


07 - Component Shelf And Latch


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177597		Liner, Door		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
2	3178584		Seal, Window		Appelez-nous	-
3	3179694		Spacer, Window		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
5	3177719		Retainer, Insulation		Appelez-nous	-
5	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
7	3181549		Glass, Door		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3181403		Frame, Door		Appelez-nous	-
10	3178647		Handle, Door		Appelez-nous	-
10	3181637		Screw (2)		Appelez-nous	-
11	3178740		Spacer (2)		Appelez-nous	-
12	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
12	4163855		Retainer, Glass		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation		Appelez-nous	-
15	3181651		Bushing, Door Handle		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
