Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177466 Liner, Oven Appelez-nous -
2 3180164 Element, Broil Appelez-nous -
2 3179117 Screw (4) Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 4164251) In-Stock Immediately $ 54.64

4 4396923 Pan, Broiler   (Replaces: 3179797) In-Stock Immediately $ 54.64

5 3178093 Rack, Offset Appelez-nous -
6 3178105 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 137.90

7 3179117 Screw (2) Appelez-nous -
8 4167277 Nut, Meat Probe Appelez-nous -
9 4163975 Gasket, Meat Probe Appelez-nous -
10 4167266 Probe Cover Appelez-nous -
11 4159557 Washer Appelez-nous -
12 3179672 Spacer - Tubing Appelez-nous -
13 4164293 Meat Probe Jack Appelez-nous -
14 4167267 Meat Probe Appelez-nous -
15 4168126 Vent Tube Appelez-nous -
16 4168412 Rack, Rotisserie Appelez-nous -
17 4168724 Spear, Rotisserie Appelez-nous -
18 4166352 Skewer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

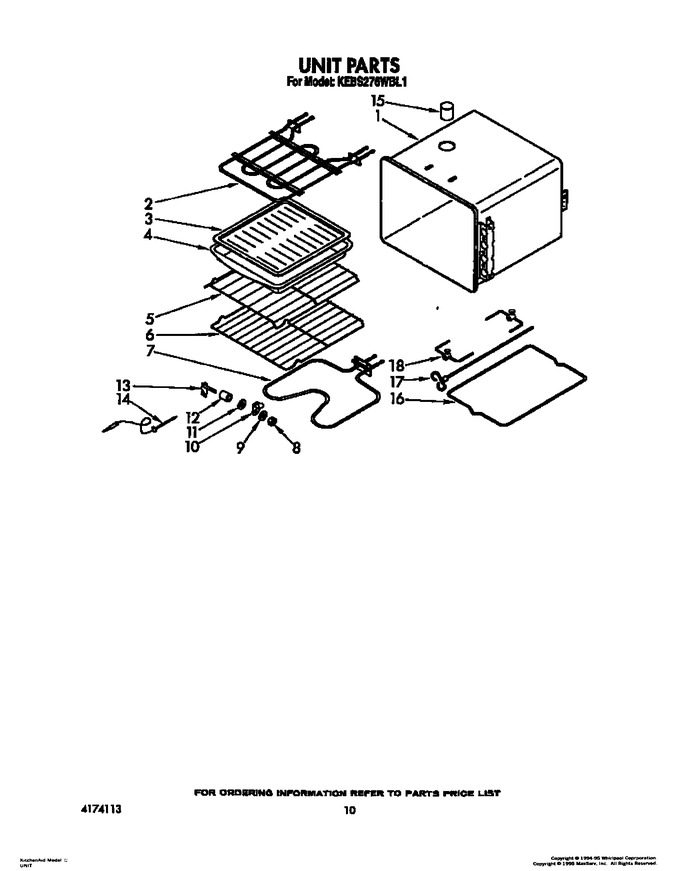

Diagram for KEBS276WBL1
