01 - Cover

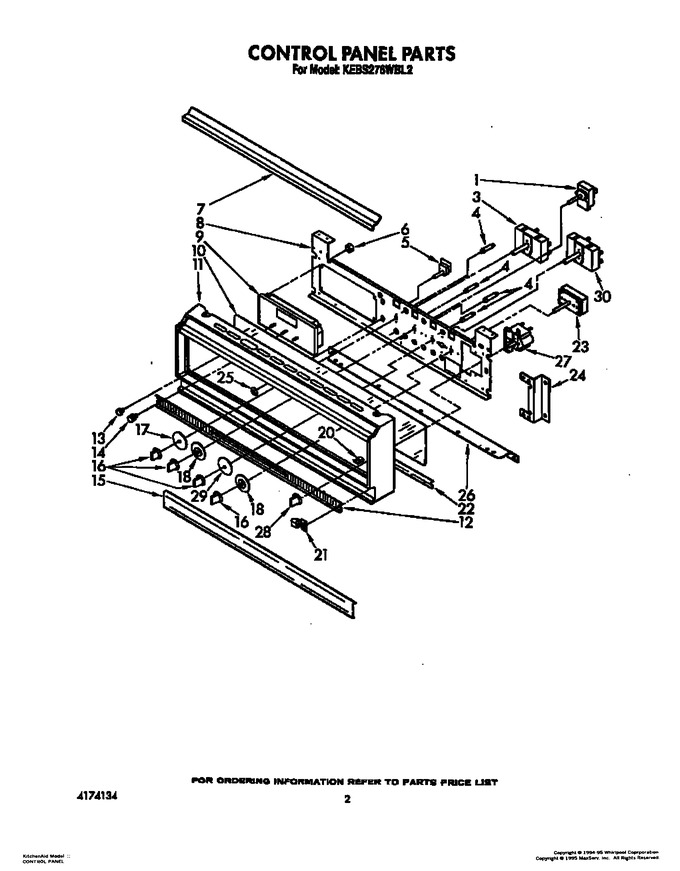

02 - Control Panel, Lit/optional
03 - Upper Oven
04 - Lower Oven, Optional
05 - Upper And Lower Door
06 - Component Shelf And Latch
07 - Unit
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3178273 | Thermostat Upper Oven |
|
- | |||||
| 1 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 3 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 3 | 3178233 | Switch, Selector Upper Oven |
|
- | |||||
| 4 | 4168598 | Light, Indicator |
|
- | |||||
| 5 | 3179891 | Switch, Oven Light |
|
- | |||||
| 6 | 98788 | Nut, Timer (4) |
|
- | |||||
| 7 | 4173385 | Insert, Top |
|
- | |||||
| 8 | 3177804 | Bracket, Control |
|
- | |||||
| 9 | 3148111 | Timer, Electronic |
|
- | |||||
| 10 | 3177935 | Glass, Control Panel |
|
- | |||||
| 11 | 3177760 | Frame, Control Panel |
|
- | |||||
| 12 | 3179916 | Insert, Vent |
|
- | |||||
| 12 | 3179847 | Screw (4) |
|
- | |||||
| 13 | 3177122 | Knob, Timer (2) |
|
- | |||||
| 14 | 3177121 | Knob, Timer |
|
- | |||||
| 15 | 3177972 | Door, Latch Handle |
|
- | |||||
| 16 | 3178400 | Knob, Control (4) |
|
$ 15.79 | |||||
| 17 | 3178262 | Disc, Selector Lower Oven |
|
- | |||||
| 18 | 3178477 | Disc, Thermostat Upper & Lower Oven |
|
- | |||||
| 20 | 4168838 | Nut (3) |
|
- | |||||
| 21 | 3177971 | Hinge, Door (2) |
|
- | |||||
| 21 | 3179847 | Screw (2) |
|
- | |||||
| 22 | 4167590 | Retainer, Glass |
|
- | |||||
| 22 | 4159456 | Screw (6) |
|
- | |||||
| 23 | 3178274 | Thermostat Lower Oven |
|
- | |||||
| 23 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 24 | 3177747 | Bracket, Control Panel |
|
- | |||||
| 24 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 25 | 4169372 | Bezel, Switch |
|
- | |||||
| 26 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 26 | 3177650 | Support, Frame |
|
- | |||||
| 27 | 254225 | Screw (2) |
|
- | |||||
| 27 | 3180156 | Indicator, Meat Probe |
|
- | |||||
| 28 | 4163840 | Knob, Meat Probe |
|
- | |||||
| 29 | 3178264 | Disc. Selector Upper Oven |
|
- | |||||
| 30 | 3178234 | Switch, Selector Lower Oven |
|
- | |||||
| 30 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| LIT3177059 | Guide, Use & Care |
|
- | ||||||
| LIT3178195 | Installation Instructions |
|
- | ||||||
| LIT3178198 | Tech Sheet |
|
- | ||||||
| LIT4174134 | Repair Parts List |
|
- |
