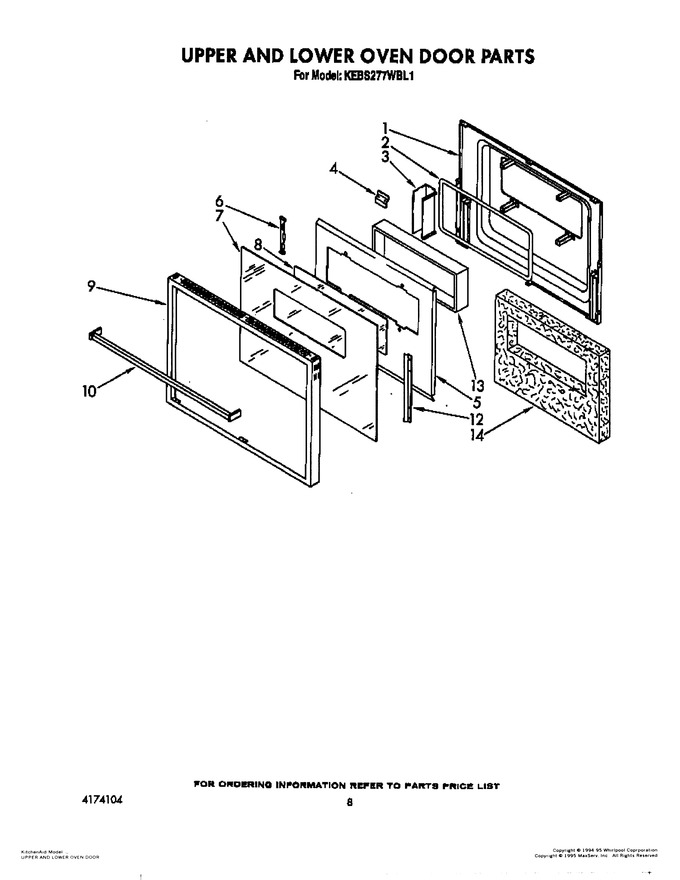

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177599		Liner, Door		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
2	3178584		Gasket, Window		Appelez-nous	-
3	3179693		Spacer, Window		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
5	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
5	3177718		Insulation, Retainer		Appelez-nous	-
6	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
6	4163855		Bracket, Glass Mounting (2)		Appelez-nous	-
7	3179699		Glass, Door (white)		Appelez-nous	-
7	3177768		Glass, Door (black)		Appelez-nous	-
7	3179700		Glass, Door (almond)		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3177671		Frame, Door (black)		Appelez-nous	-
9	3177673		Frame, Door (white)		Appelez-nous	-
9	3177674		Frame, Door (almond)		Appelez-nous	-
10	3178642		Handle, Door (black)		Appelez-nous	-
10	3179114		Handle, Door (screw (2))		Appelez-nous	-
10	3178644		Handle, Door (white)		Appelez-nous	-
10	3178645		Handle, Door (almond)		Appelez-nous	-
12	3179795		Screw (12)		Appelez-nous	-
12	4167975		Retainer, Glass		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
