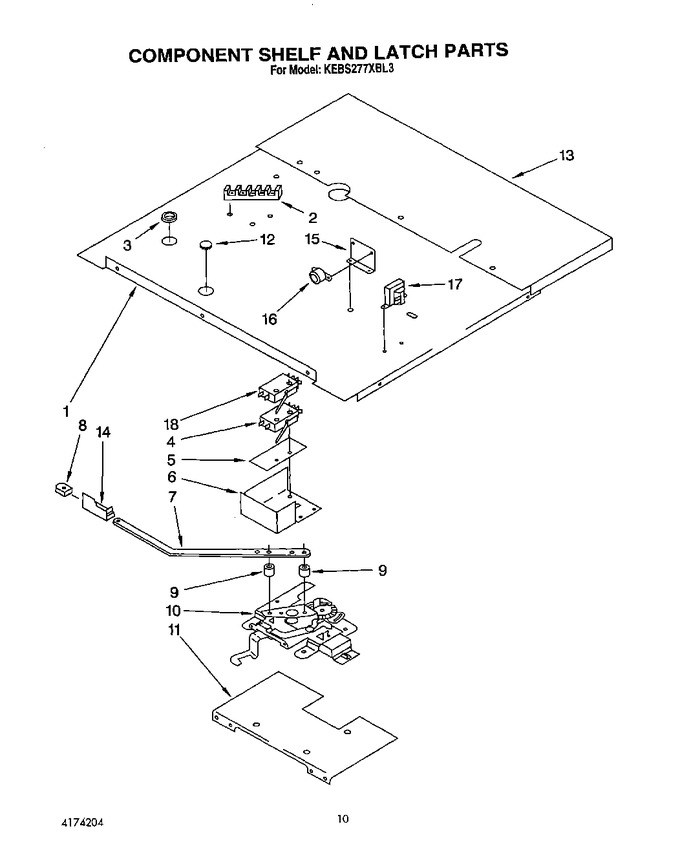

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3178089 Shelf, Component Appelez-nous -
1 WP90767 Screw (7)   (Replaces: 300890) In-Stock Immediately $ 7.43

2 WP8203546 Block, Terminal   (Replaces: 258076) In-Stock Immediately $ 27.12

2 W10841059 Screw (2)   (Replaces: 98445) Appelez-nous -
3 4159035 Bushing Appelez-nous -
4 3178668 Switch, Latch Appelez-nous -
4 98106 Screw (2) Appelez-nous -
5 3178185 Insulator, Switch Appelez-nous -
6 3177662 Guard, Latch Appelez-nous -
6 254225 Screw (2) Appelez-nous -
6 WP3177991 Screw (1)   (Replaces: 3177991) In-Stock Immediately $ 6.80

7 4159187 Handle, Latch (screw (2)) Appelez-nous -
7 WP90767 Handle, Latch (screw (8))   (Replaces: 300890) In-Stock Immediately $ 7.43

7 3181963 Handle, Latch (lower Oven) Appelez-nous -
7 3177969 Handle, Latch (upper Oven) Appelez-nous -
7 3179950 Handle, Latch (screw (2)) Appelez-nous -
8 3183294 Screw Appelez-nous -
8 3183293 Knob, Latch Handle Appelez-nous -
9 3179950 Screw (2) Appelez-nous -
9 3177986 Spacer, Handle Appelez-nous -
10 3178410 Latch, Mechanism Appelez-nous -
10 WP3177991 Screw (3)   (Replaces: 3177991) In-Stock Immediately $ 6.80

11 3177496 Plate, Mounting Appelez-nous -
11 WP3177991 Screw (3)   (Replaces: 3177991) In-Stock Immediately $ 6.80

12 3179777 Plug, Button Appelez-nous -
13 WP3177991 Screw (8)   (Replaces: 3177991) In-Stock Immediately $ 6.80

13 3178132 Extension, Shelf Appelez-nous -
14 3178232 Support, Latch Appelez-nous -
14 WP488234 Screw   (Replaces: 4159334) Special Order $ 6.37

15 3179695 Bracket, Buzzer Appelez-nous -
15 313806 Screw (2) Appelez-nous -
16 254225 Screw, Appelez-nous -
16 3179914 Buzzer, Meat Probe Appelez-nous -
16 W10841059 Screw (2)   (Replaces: 98445) Appelez-nous -
17 WP3177991 Screw (2)   (Replaces: 3177991) In-Stock Immediately $ 6.80

17 3179532 Transformer Appelez-nous -
18 3177988 Screw (2) Appelez-nous -
18 3178669 Switch, Latch Appelez-nous -
