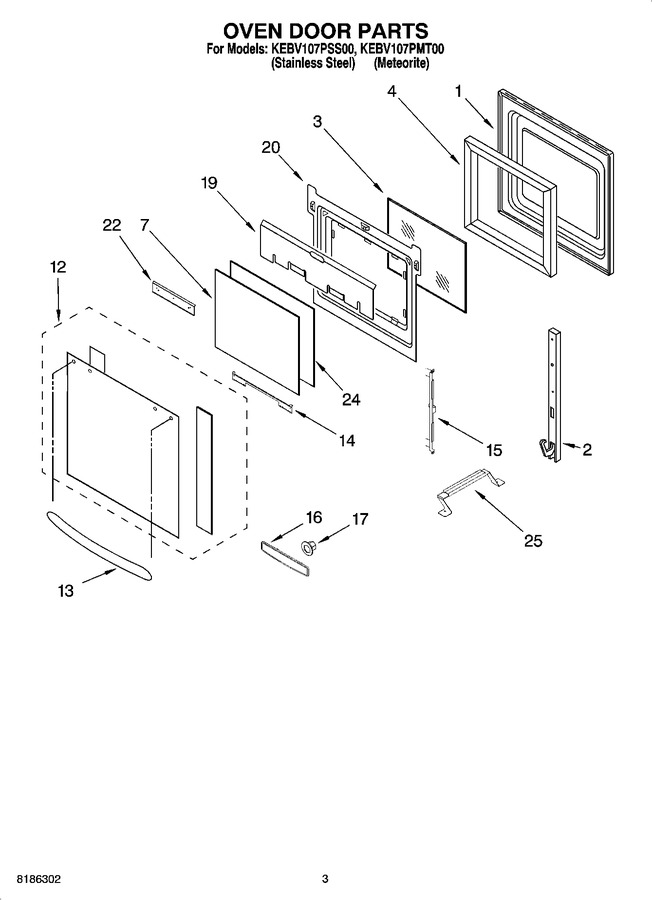

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4457127)				$ 333.41
2	WP9760577		Hinge, Door (r.side (yellow))   (Replaces: 8300577)			Immediately	$ 104.89
2	WP9760574		Hinge, Door (l.side (yellow))   (Replaces: 8300578)			Immediately	$ 102.33
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.80
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 192.01
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 170.79
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 178.02
12	4457293		Door Glass, Assy (meteorite)		Appelez-nous	-
12	4457292		Door Glass, Assy (stainless Steel)		Appelez-nous	-
13	8301679		Door Handle		Appelez-nous	-
14	WPW10132940		Screw   (Replaces: 3196184)				$ 9.11
14	8303668		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 168.75
16	8531789		Nameplate		Appelez-nous	-
17	4453107		Palnut		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 35.30
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
20	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 288.89
22	4457114		Shield, Heat-bottom				$ 196.01
24	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 178.02
25	9759230		Bracket (3rdglass)				$ 36.30
