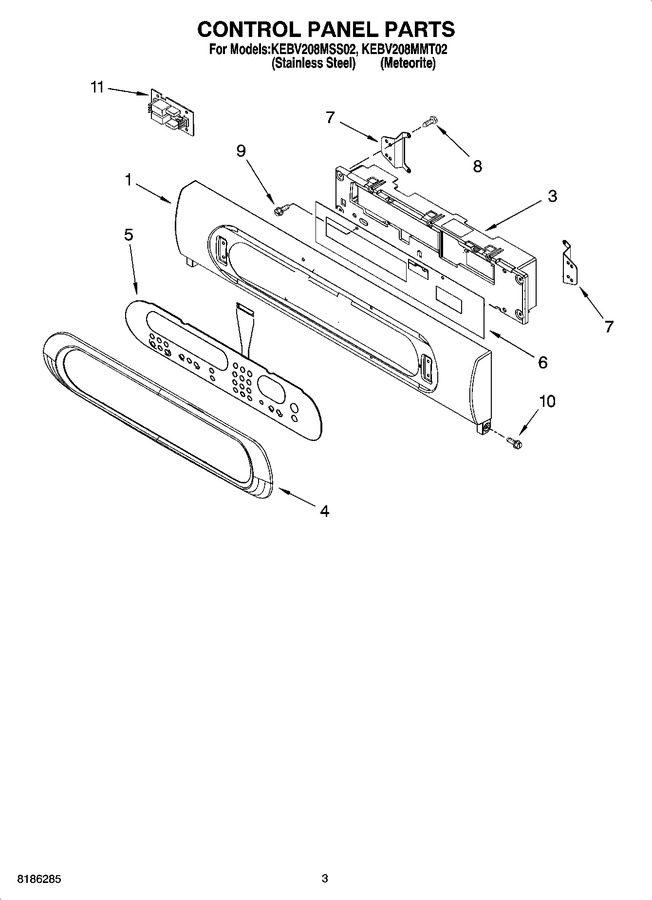

02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303660		Panel, Control (stainless Steel)		Appelez-nous	-
1	8303661		Panel, Control (meteorite)		Appelez-nous	-
3	8303018		Assy, Control		Appelez-nous	-
4	8303011		Frame, Control Pnl		Appelez-nous	-
5	8303470		Assy, Membrane (stainless Steel)				$ 311.84
5	8303471		Assy, Membrane (meteorite)		Appelez-nous	-
6	8303522BL		Backer, Control		Appelez-nous	-
7	8301796		Bracket		Appelez-nous	-
8	WP4449154		Screw, 8-32   (Replaces: 4449154)				$ 8.16
9	WP3400832		Screw, 8-18   (Replaces: 3400832)			Immediately	$ 8.18
10	WP3400892		Screw, 8-32   (Replaces: 3400892)				$ 8.24
11	8301848		Sister Board, Latch				$ 184.23
