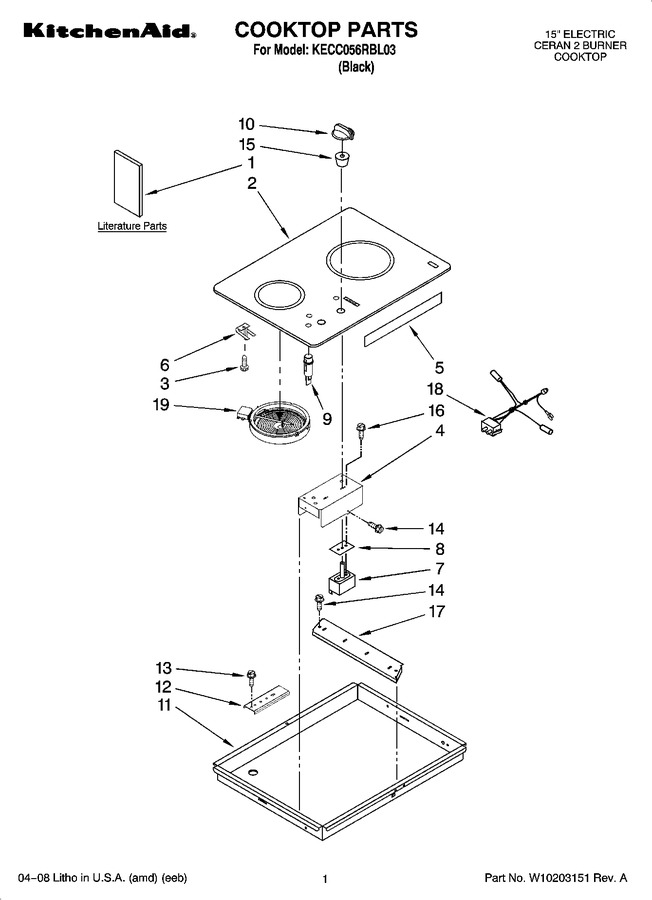

01 - Cooktop Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 8286066 | Installation Instructions |
|
- | |||||
| 1 | 3192609 | Wiring Diagram |
|
- | |||||
| 1 | W10162162 | Use & Care Guide |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10665724 | Cooktop, Glass (Replaces: 8286989) |
|
$ 606.85 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 7.21 | |||||
| 4 | W10414006 | Bracket, Switch Mounting (Replaces: 3192702) |
|
$ 72.99 | |||||
| 5 | 4457298 | Foam, Seal |
|
$ 5.58 | |||||
| 6 | 9759094 | Spring Locator (4) |
|
$ 6.65 | |||||
| 7 | WP3191050 | Switch, Infinite (1800w/rear Burner) (Replaces: 3191050) |
|
Immediately | $ 157.21 | ||||
| 7 | WP3191049 | Switch, Infinite (1200w/front Burner) (Replaces: 3191049) |
|
$ 157.76 | |||||
| 8 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 104.13 | |||||
| 10 | WP9750372FF | Knob, Control (2) (black) (Replaces: 9750372FF) |
|
Immediately | $ 19.80 | ||||
| 10 | WP9750372FW | Knob, Control (2) (white) (Replaces: 9750372FW) |
|
$ 18.89 | |||||
| 10 | WP9750372FC | Knob, Control (2) (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.80 | ||||
| 11 | 8286988 | Box, Burner |
|
- | |||||
| 12 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 13 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Infinite |
|
$ 47.25 | |||||
| 16 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 17 | 3192721 | Rail, Element |
|
- | |||||
| 18 | 3192612 | Lamp, Hot Surface Indicator |
|
- | |||||
| 19 | W10823711 | Element, Surface (1200w/front Burner) (Replaces: 8523698) |
|
Immediately | $ 227.75 | ||||
| 19 | 3183956 | Element, Surface (seal, Switch Cover) |
|
$ 43.89 | |||||
| 19 | W10823698 | Element, Surface (1800w/rear Burner) (Replaces: 8523696) |
|
Immediately | $ 213.08 | ||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 10.48 | ||||||
| W11170321 | Harness, Main (Replaces: 4457254) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 4455364 | Bracket, Support |
|
$ 86.47 | ||||||
| W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 4456511 | Conduit |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.80 |
