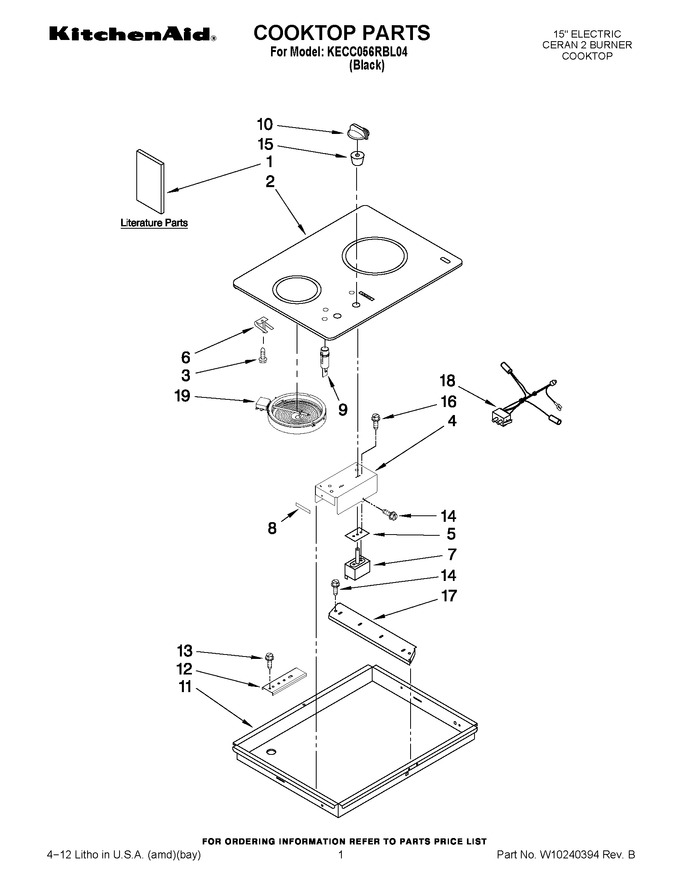

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286066		Installation Instructions		Appelez-nous	-
1	3192609		Wiring Diagram		Appelez-nous	-
1	W10162162		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10665724		Cooktop, Glass   (Replaces: W10487934)				$ 606.85
3	WP486754		Screw   (Replaces: 246119)				$ 7.21
4	W10414006		Bracket, Switch Mounting				$ 72.99
5	3183956		Seal, Switch Cover				$ 43.89
6	9759094		Spring Locator				$ 6.65
7	WP3191050		Switch, Infinite (1800w/rear Burner)   (Replaces: 3191050)			Immediately	$ 157.21
7	WP3191049		Switch, Infinite (1200w/front Burner)   (Replaces: 3191049)				$ 157.76
8	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.85
9	3193012		Light, Indicator				$ 104.13
10	WP9750372FF		Knob, Control (black)   (Replaces: 9750372FF)			Immediately	$ 19.80
10	WP9750372FW		Knob, Control (white)   (Replaces: 9750372FW)				$ 18.89
10	WP9750372FC		Knob, Control (biscuit)   (Replaces: 9750372FC)			Immediately	$ 6.80
11	8286988		Box, Burner		Appelez-nous	-
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 83.57
13	WP3400093		Screw   (Replaces: 3400093)				$ 6.80
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	8285469		Seal, Infinite				$ 47.25
16	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.57
17	3192721		Rail, Element		Appelez-nous	-
18	3192612		Lamp, Hot Surface Indicator		Appelez-nous	-
19	W10823698		Element, Surface (1800w/rear Burner)   (Replaces: 8523696)			Immediately	$ 213.08
19	W10823711		Element, Surface (1200w/front Burner)   (Replaces: 8523698)			Immediately	$ 227.75
NI	4455364		Bracket, Support				$ 86.47
