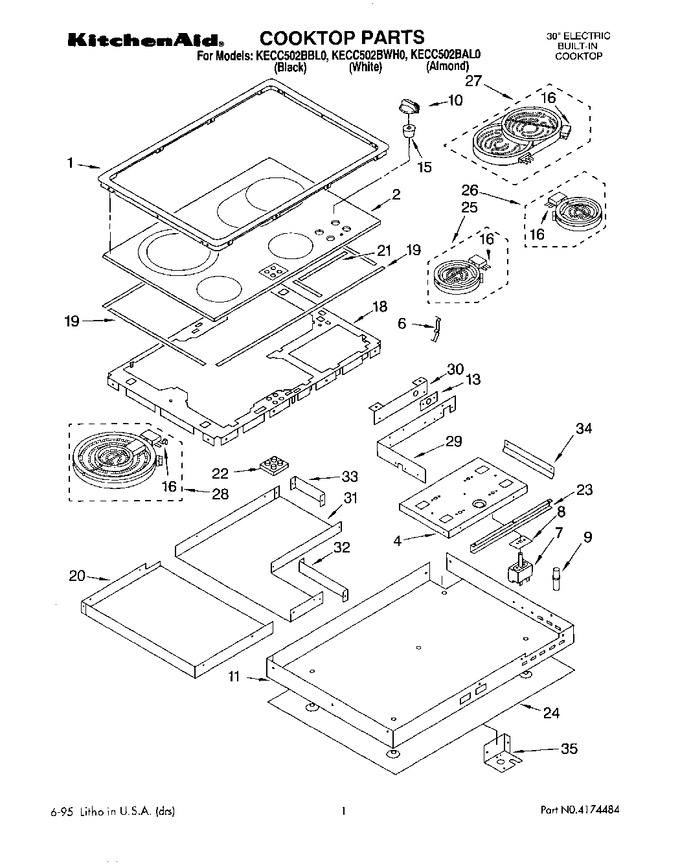

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187744		Trim Ring, Cooktop (black)		Appelez-nous	-
1	3187745		Trim Ring, Cooktop (white)		Appelez-nous	-
1	3187746		Trim Ring, Cooktop (almond)		Appelez-nous	-
2	3188894		Cooktop, Glass (almond)		Appelez-nous	-
2	3187813		Cooktop, Glass (white)		Appelez-nous	-
2	3187812		Cooktop, Glass (black)		Appelez-nous	-
4	3188101		Bracket, Switch Mounting		Appelez-nous	-
6	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
6	3187707		Spring Locator (8)		Appelez-nous	-
7	8203534		Switch, Infinite (use W/2200w/1400w Right Rear Burner)   (Replaces: 3188516)			Immediately	$ 158.76
7	W10900107		Switch, Infinite (use W/1200 W Left Front Burner)   (Replaces: 3189171)			Immediately	$ 51.87
7	3189169		Switch, Infinite (use W/1400w Right Front Burner)		Appelez-nous	-
8	WP486579		Screw   (Replaces: 311865)				$ 7.10
8	3183956		Seal, Switch Shaft				$ 43.89
9	3187750		Light, Indicator		Appelez-nous	-
10	WP9750372FF		Knob, Control (4) (black)   (Replaces: 9750372FF)			Immediately	$ 19.80
10	9750372FT		Knob, Control (4) (almond)		Appelez-nous	-
10	WP9750372FW		Knob, Control (4) (white)   (Replaces: 9750372FW)				$ 18.89
11	3188754		Box, Burner		Appelez-nous	-
13	4159456		Screw		Appelez-nous	-
13	3188533		Grommet		Appelez-nous	-
15	3182435		Seal, Switch (4)		Appelez-nous	-
16	3187536		Switch, Limiter (use W/3187188 Element)		Appelez-nous	-
16	3187537		Switch, Limiter (use W/3187119 Element)		Appelez-nous	-
16	3187528		Switch, Limiter (use W/3184952 Element)		Appelez-nous	-
16	3188783		Switch, Limiter (use W/3188156 Element)		Appelez-nous	-
18	3188100		Plate, Backer		Appelez-nous	-
19	3185589		Seal, Silicone (small (2))		Appelez-nous	-
19	3185590		Seal, Silicone (large (2))		Appelez-nous	-
20	3187753		Shield, Heat		Appelez-nous	-
20	4159456		Screw		Appelez-nous	-
21	3188852		Seal, Silicone		Appelez-nous	-
22	3188879		Lamp, Hot Surface Indicator		Appelez-nous	-
22	4168863		Screw		Appelez-nous	-
23	4159456		Screw		Appelez-nous	-
23	3189152		Bracket, Stiffening		Appelez-nous	-
24	4159456		Screw		Appelez-nous	-
24	3188437		Shield, Heat		Appelez-nous	-
25	3188156		1200w Left Front		Appelez-nous	-
26	3184952		1400w Right Front		Appelez-nous	-
27	3187119		2200/1400w Right Rear		Appelez-nous	-
28	W10823694		2400/1000 Left Rear   (Replaces: 3187188)			Immediately	$ 336.30
29	3188844		Shield, Heat		Appelez-nous	-
29	4159456		Screw		Appelez-nous	-
30	3189174		Bracket		Appelez-nous	-
30	4159456		Screw		Appelez-nous	-
31	3188102		Shield, Heat		Appelez-nous	-
32	4159456		Screw		Appelez-nous	-
32	3188158		Plate, Interior		Appelez-nous	-
33	3189159		Plate, End		Appelez-nous	-
33	4159456		Screw		Appelez-nous	-
34	4159456		Screw		Appelez-nous	-
34	3189036		Plate Louver		Appelez-nous	-
35	3189273		Cover, Conduit		Appelez-nous	-
