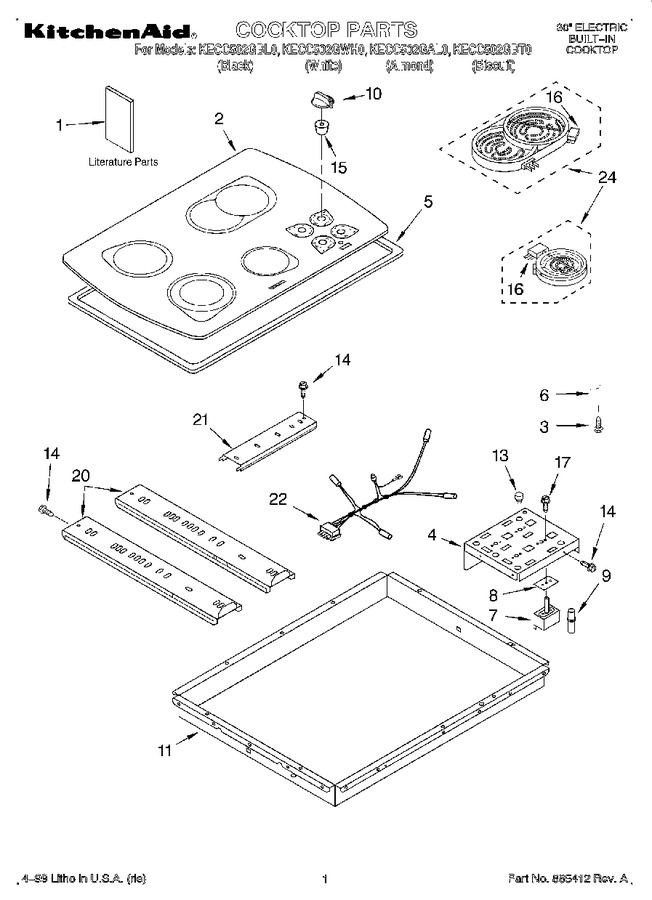

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191524 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3191771 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3191794 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 3191876 | Cooktop, Glass (biscuit) |
|
- | |||||
| 2 | 3191875 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 3191910 | Cooktop, Glass (black) |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 7.21 | |||||
| 4 | 3192163 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 3191948 | Seal, Burner Box |
|
- | |||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (use W/1200w Right Front Burner) (Replaces: 3191049) |
|
$ 157.76 | |||||
| 7 | 8203534 | Switch, Infinite (use W/2400 Left Front Burner) (Replaces: 3188516) |
|
Immediately | $ 158.76 | ||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 43.89 | |||||
| 9 | 3191945 | Light, Indicator |
|
- | |||||
| 10 | WP9750372FW | Knob, Control (4) (white) (Replaces: 9750372FW) |
|
$ 18.89 | |||||
| 10 | WP9750372FF | Knob, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 19.80 | ||||
| 10 | WP9750372FC | Knob, Control (4) (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.80 | ||||
| 10 | 9750372FT | Knob, Control (4) (almond) |
|
- | |||||
| 11 | 3191162 | Box, Burner |
|
- | |||||
| 13 | 9750835 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3191989 | Switch, Limiter (use W/3191981 Element) |
|
- | |||||
| 16 | 3191963 | Switch, Limiter (use W/3191720 Element) |
|
- | |||||
| 16 | 3191966 | Switch, Limiter (use W/3191723 Element) |
|
- | |||||
| 16 | 3191990 | Switch, Limiter (use W/3191984 Element) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 20 | 3191515 | Rail, Element (2) |
|
- | |||||
| 21 | 3192268 | Rail, Element (1) |
|
- | |||||
| 22 | 3191343 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 24 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 24 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 24 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 24 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 24 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 24 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 24 | 3184478 | Cleaner, Glass |
|
- | |||||
| 24 | 3192264 | Wiring Harness Surface Unit |
|
- | |||||
| 24 | 3192220 | Conduit, Harness |
|
- | |||||
| 24 | 3191984 | Element, Surface (includes No. 16) (1200w Right Front) |
|
- | |||||
| 24 | 3191981 | Element, Surface (includes No. 16) (1400w Left Rear) |
|
- | |||||
| 24 | 3191720 | Element, Surface (includes No. 16) (1800w/1000w Right Rear) |
|
- | |||||
| 24 | W10823692 | Element, Surface (includes No. 16) (2400w/1000w Left Front) (Replaces: 3191723) |
|
Immediately | $ 253.60 | ||||
| 24 | 3172515 | Mtg. Hardware Kit |
|
- | |||||
| 24 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 24 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 24 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 24 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 24 | WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 5.32 | ||||
| 24 | 242829 | Wire, Red 12 Ga. 150~c |
|
- |
