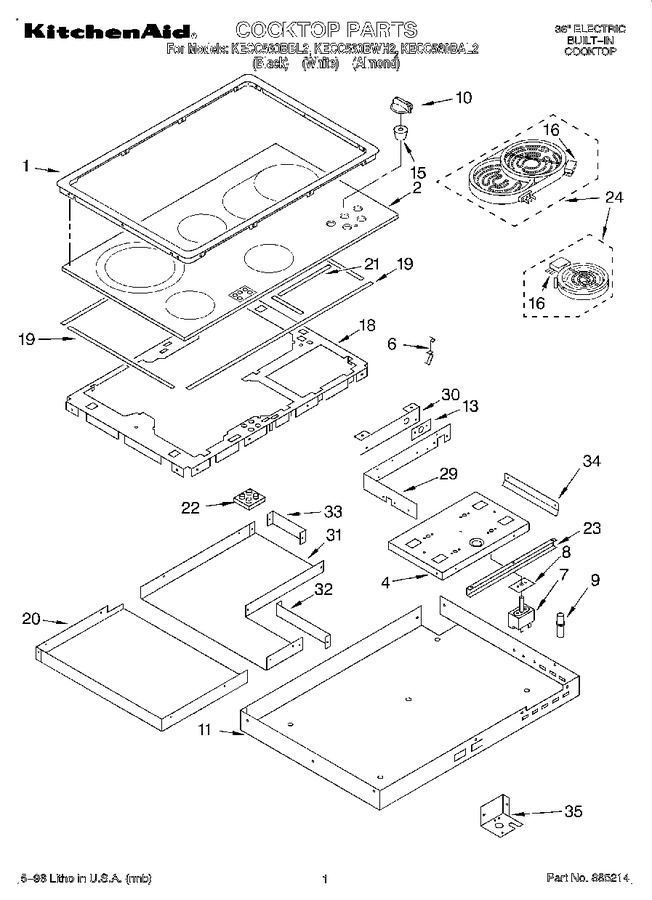

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187822		Trim Ring, Cooktop (almond)		Appelez-nous	-
1	3187820		Trim Ring, Cooktop (black)		Appelez-nous	-
1	3187821		Trim Ring, Cooktop (white)		Appelez-nous	-
2	3188897		Cooktop, Glass (almond)		Appelez-nous	-
2	3187817		Cooktop, Glass (white)		Appelez-nous	-
2	3187816		Cooktop, Glass (black)		Appelez-nous	-
4	3188308		Bracket, Switch Mounting		Appelez-nous	-
6	3189165		Spring, Locator (8)		Appelez-nous	-
6	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
7	8203534		Switch, Infinite (use W/2200w Right Rear Burner)   (Replaces: 3188516)			Immediately	$ 158.76
7	WP3191049		Switch, Infinite (use W/1200 W Left Front Burner)   (Replaces: 4454539)				$ 157.76
8	WP486579		Screw   (Replaces: 311865)				$ 7.10
8	3183956		Seal, Switch Shaft				$ 43.89
9	4454437		Light, Indicator		Appelez-nous	-
10	WP9750372FW		Knob, Control (4) (white)   (Replaces: 9750372FW)				$ 18.89
10	WP9750372FF		Knob, Control (4) (black)   (Replaces: 9750372FF)			Immediately	$ 19.80
10	9750372FT		Knob, Control (4) (almond)		Appelez-nous	-
11	3188103		Box, Burner		Appelez-nous	-
13	4159456		Screw		Appelez-nous	-
13	3188533		Grommet		Appelez-nous	-
15	3182435		Seal, Switch (4)		Appelez-nous	-
16	3190441		Switch, Limiter (use W/3189899 Element)		Appelez-nous	-
16	3190248		Switch, Limiter (use W/3196428 Element)		Appelez-nous	-
16	3190247		Switch, Limiter (use W/3189901 Element)		Appelez-nous	-
16	3190253		Switch, Limiter (use W/3189894 Element)		Appelez-nous	-
18	3189843		Plate, Backer		Appelez-nous	-
19	3185589		Seal, Silicone (small (2))		Appelez-nous	-
19	3188854		Seal, Silicone (large (2))		Appelez-nous	-
20	3187753		Shield, Heat (element)		Appelez-nous	-
20	4159456		Screw		Appelez-nous	-
21	3188853		Seal, Silicone (11 In.)		Appelez-nous	-
21	3188852		Seal, Silicone (8 In.)		Appelez-nous	-
22	3189756		Lamp, Hot Surface Indicator		Appelez-nous	-
22	4168863		Screw		Appelez-nous	-
23	3189152		Bracket, Stiffening		Appelez-nous	-
23	4159456		Screw		Appelez-nous	-
24	3189901		Element, Surface (includes No. 16) (2200w/1000w Right Rear)		Appelez-nous	-
24	W10823704		Element, Surface (includes No. 16) (1200w Left Front)   (Replaces: 3196428)			Immediately	$ 324.46
24	3189894		Element, Surface (includes No. 16) (1400w Right Front & Center Rear)		Appelez-nous	-
24	W10823694		Element, Surface (includes No. 16) (2400/1000w Left Rear)   (Replaces: 3189899)			Immediately	$ 336.30
29	3188876		Shield, Heat Switch		Appelez-nous	-
29	4159456		Screw		Appelez-nous	-
30	4159456		Screw		Appelez-nous	-
30	3189175		Bracket, L		Appelez-nous	-
31	3188309		Shield, Heat Element		Appelez-nous	-
31	4159456		Screw		Appelez-nous	-
32	4159456		Screw		Appelez-nous	-
32	3188158		Plate, Interior		Appelez-nous	-
33	3189159		Plate, End		Appelez-nous	-
33	4159456		Screw		Appelez-nous	-
34	4159456		Screw		Appelez-nous	-
34	3189036		Plate Louver		Appelez-nous	-
35	3189273		Cover, Conduit		Appelez-nous	-
