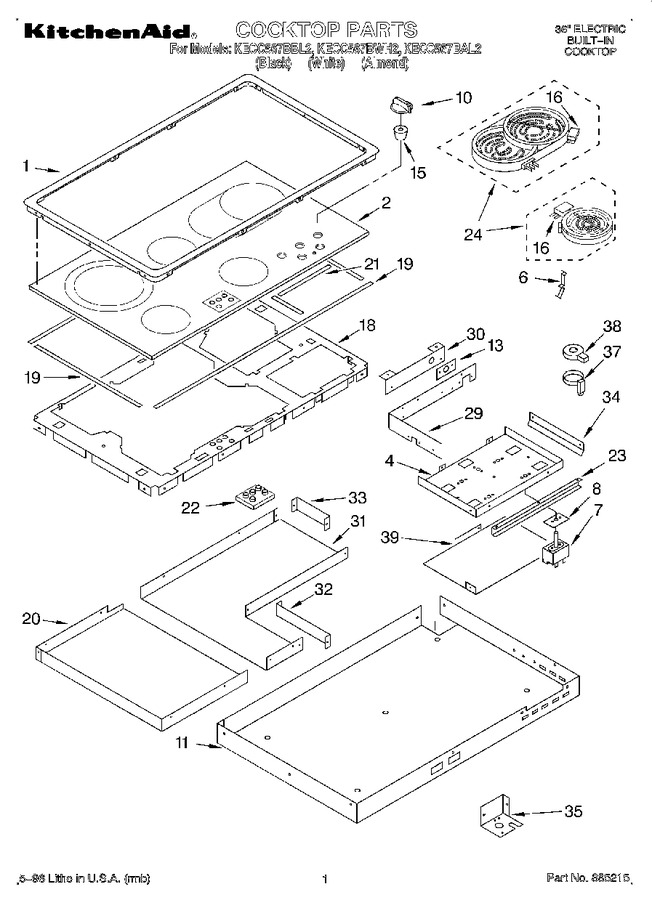

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187820 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3187821 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 3187822 | Trim Ring, Cooktop (almond) |
|
- | |||||
| 2 | 3188896 | Cooktop, Glass (almond) |
|
- | |||||
| 2 | 3187818 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3187819 | Cooktop, Glass (white) |
|
- | |||||
| 4 | 3188308 | Bracket, Switch Mounting |
|
- | |||||
| 6 | 3189165 | Spring, Locator (10) |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 7.21 | |||||
| 7 | 4454543 | Switch, Infinite (use W/1400w Center Rear Burner) |
|
- | |||||
| 7 | WP3188755 | Switch, Infinite (use W/2200/1000w Right Rear Burner) (Replaces: 3188755) |
|
$ 173.01 | |||||
| 8 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 43.89 | |||||
| 10 | 9750372F | Knob, Control (4) (almond) |
|
- | |||||
| 10 | 421190 | Knob, Control (4) (white) |
|
- | |||||
| 11 | 3188103 | Box, Burner |
|
- | |||||
| 13 | 4159456 | Screw |
|
- | |||||
| 13 | 3188533 | Grommet |
|
- | |||||
| 15 | 3182435 | Seal, Switch (5) |
|
- | |||||
| 16 | 3190441 | Switch, Limiter (use W/3189899 Element) |
|
- | |||||
| 16 | 3190247 | Switch, Limiter (use W/3189901 Element) |
|
- | |||||
| 16 | 3189667 | Switch, Limiter (use W/3189655 Element) |
|
- | |||||
| 16 | 3190253 | Switch, Limiter (use W/3189894 Element) |
|
- | |||||
| 16 | 3189668 | Switch, Limiter (use W/3189656 Element) |
|
- | |||||
| 18 | 3189843 | Plate, Backer |
|
- | |||||
| 19 | 3188854 | Seal, Silicone (large (2)) |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (2)) |
|
- | |||||
| 20 | 3187753 | Shield, Heat |
|
- | |||||
| 20 | 4159456 | Screw |
|
- | |||||
| 21 | 3188852 | Seal, Silicone (8 In.) |
|
- | |||||
| 21 | 3188853 | Seal, Silicone (11 In.) |
|
- | |||||
| 22 | 4168863 | Screw |
|
- | |||||
| 22 | 3189756 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | 4159456 | Screw |
|
- | |||||
| 23 | 3189152 | Bracket, Stiffening |
|
- | |||||
| 24 | 3189656 | Element, Surface (includes No. 16) (1500w Right Front) |
|
- | |||||
| 24 | 3189894 | Element, Surface (includes No. 16) (1400w Center Rear) |
|
- | |||||
| 24 | W10823694 | Element, Surface (includes No. 16) (2400w/1000w Left Rear) (Replaces: 3189899) |
|
Immediately | $ 336.30 | ||||
| 24 | 3189655 | Element, Surface (includes No. 16) (1200w Left Front) |
|
- | |||||
| 24 | 3189901 | Element, Surface (includes No. 16) (2200w/1000w Right Rear) |
|
- | |||||
| 29 | 3188876 | Shield, Heat |
|
- | |||||
| 29 | 4159456 | Screw |
|
- | |||||
| 30 | 3189175 | Bracket, L |
|
- | |||||
| 30 | 4159456 | Screw |
|
- | |||||
| 31 | 3188309 | Shield, Heat |
|
- | |||||
| 32 | 4159456 | Screw |
|
- | |||||
| 32 | 3188158 | Plate, Interior |
|
- | |||||
| 33 | 4159456 | Screw |
|
- | |||||
| 33 | 3189159 | Plate, End |
|
- | |||||
| 34 | 3189036 | Plate Louver |
|
- | |||||
| 34 | 4159456 | Screw |
|
- | |||||
| 35 | 3189273 | Cover, Conduit |
|
- | |||||
| 37 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 37 | 3188760 | Housing, Backlight |
|
- | |||||
| 38 | 3188761 | Lens, Backlight |
|
- | |||||
| 39 | 4159456 | Screw |
|
- | |||||
| 39 | 3188786 | Insulator |
|
- | |||||
| LIT4454475 | Use & Care Guide |
|
- | ||||||
| LIT3189330 | Installation Instructions |
|
- | ||||||
| 3189759 | Harness, Main |
|
- | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 5.32 | |||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| LIT3190374 | Wiring Diagram |
|
- | ||||||
| 3189130 | Conduit Assembly |
|
- | ||||||
| 3179589 | Tie, Wire |
|
- |
