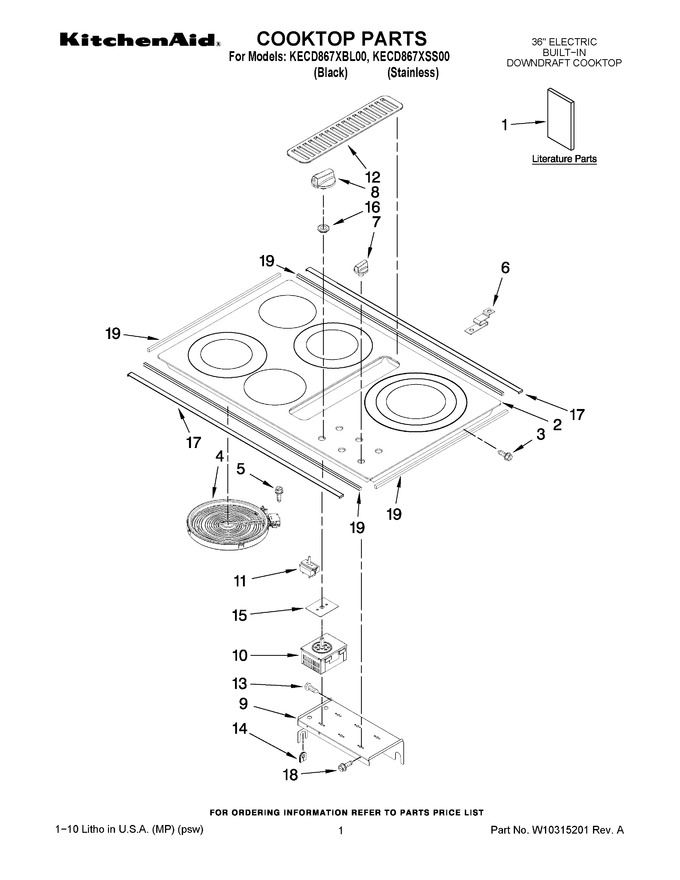

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | W10299315 | Tech Sheet |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10298568 | Installation Instructions |
|
- | |||||
| 1 | W10296511 | Use & Care Guide |
|
- | |||||
| 2 | W10296278 | Top, Main |
|
$ 577.71 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 4 | WPW10204680 | Element, Surface (triple) (Replaces: W10204680) |
|
Immediately | $ 363.38 | ||||
| 4 | W11171119 | Element, Surface (rf) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 4 | WP7406P497-60 | Element, Surface (lr) (Replaces: 7406P497-60) |
|
Immediately | $ 139.58 | ||||
| 4 | WPW10221529 | Element, Surface (lf/rr) (Replaces: W10221529) |
|
Immediately | $ 319.91 | ||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 6 | 8004P093-60 | Support, Ceramic |
|
$ 10.61 | |||||
| 7 | W10298840 | Switch, Fan |
|
$ 40.37 | |||||
| 8 | WPW10298835 | Knob, Control (Replaces: W10298835) |
|
$ 22.22 | |||||
| 9 | W10161712 | Plate, Switch |
|
- | |||||
| 10 | WPW10234425 | Switch, Control (triple) (Replaces: W10234425) |
|
Immediately | $ 241.28 | ||||
| 10 | WP7403P238-60 | Switch, Control (lr) (Replaces: 7403P373-60) |
|
Immediately | $ 67.30 | ||||
| 10 | WPW10222828 | Switch, Control (rf) (Replaces: W10222828) |
|
Immediately | $ 309.74 | ||||
| 10 | WPW10215034 | Switch, Control (lf/rr) (Replaces: W10215034) |
|
Immediately | $ 303.71 | ||||
| 11 | WP4456836 | Switch, Blower (Replaces: 4456836) |
|
Immediately | $ 219.99 | ||||
| 12 | WPW10205094 | Grille, Air (Replaces: W10205094) |
|
$ 229.90 | |||||
| 13 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 14 | 8008P068-60 | Wire, Grommet |
|
$ 15.11 | |||||
| 15 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 16 | WPW10293874 | Grommet, Switch (Replaces: 8008P076-60) |
|
Immediately | $ 7.61 | ||||
| 17 | W10299380 | Trim Stainless Only (front Trim) |
|
$ 123.67 | |||||
| 17 | W10168884 | Trim Stainless Only (rear Trim) |
|
$ 149.79 | |||||
| 18 | WP7101P309-60 | Screw, 8-32 X7/32 (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 19 | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 74.52 |
