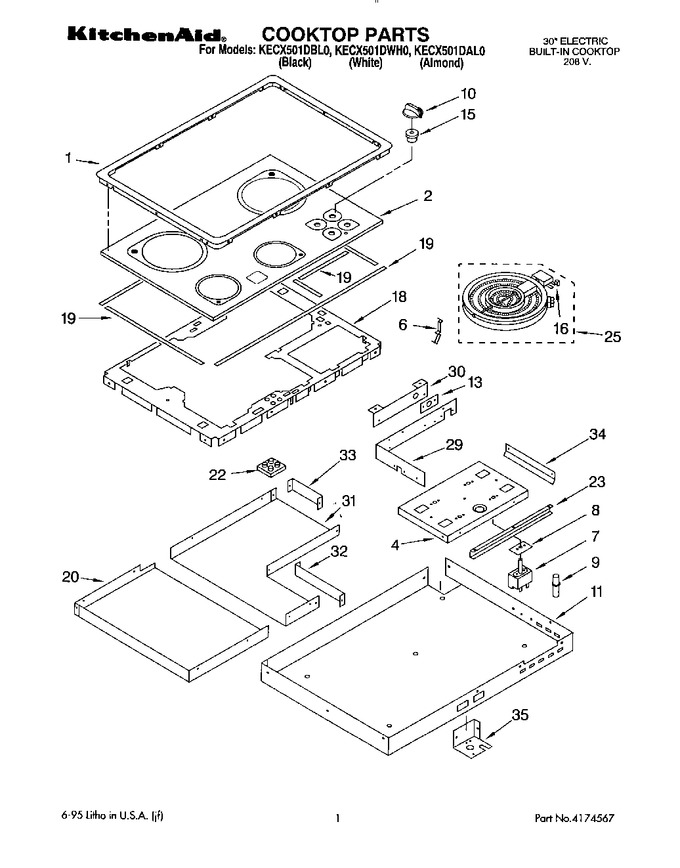

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187744		Trim Ring, Cooktop (black)		Appelez-nous	-
1	3187745		Trim Ring, Cooktop (white)		Appelez-nous	-
1	3187746		Trim Ring, Cooktop (almond)		Appelez-nous	-
2	3188255		Cooktop, Glass (black)		Appelez-nous	-
2	3188893		Cooktop, Glass (almond)		Appelez-nous	-
2	3188256		Cooktop, Glass (white)		Appelez-nous	-
4	3188101		Bracket, Switch Mounting		Appelez-nous	-
6	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
6	3189165		Spring, Locator (8)		Appelez-nous	-
7	4454445		Switch, Infinite (use W/1200w Left Front Burner)		Appelez-nous	-
7	4454442		Switch, Infinite (use W/2400w Left Rear Burner)		Appelez-nous	-
7	3189169		Switch, Infinite (use W/1400w Right Front Burner)		Appelez-nous	-
7	3189172		Switch, Infinite (use W/2100w Right Rear Burner)		Appelez-nous	-
8	WP486579		Screw   (Replaces: 311865)				$ 7.10
8	3183956		Seal, Switch				$ 43.89
9	3187750		Light, Indicator		Appelez-nous	-
10	WP9750372FF		Knob Assembly (4) (black)   (Replaces: 9750372FF)			Immediately	$ 19.80
10	9750372FT		Knob Assembly (4) (almond)		Appelez-nous	-
10	WP9750372FW		Knob Assembly (4) (white)   (Replaces: 9750372FW)				$ 18.89
11	4159456		Plug Screws (5)		Appelez-nous	-
11	3188754		Box, Burner		Appelez-nous	-
13	4159456		Screw		Appelez-nous	-
13	3188533		Grommet		Appelez-nous	-
15	3182435		Seal, Switch (4)		Appelez-nous	-
16	3188783		Switch, Limiter (use W/4454438 Element)		Appelez-nous	-
16	3187535		Switch, Limiter (use W/4454441 Element)		Appelez-nous	-
16	3187532		Switch, Limiter (use W/4454440 Element)		Appelez-nous	-
16	3187528		Switch, Limiter (use W/4454439 Element)		Appelez-nous	-
18	3188257		Plate, Backer		Appelez-nous	-
19	3185589		Seal, Silicone (sides (2))		Appelez-nous	-
19	3185590		Seal, Silicone (front & Back (2))		Appelez-nous	-
19	3188852		Seal, Silicone (controls (2))		Appelez-nous	-
20	4159456		Screw		Appelez-nous	-
20	3187753		Shield, Heat		Appelez-nous	-
22	4168863		Screw		Appelez-nous	-
22	3188879		Lamp, Hot Surface Indicator		Appelez-nous	-
23	4159456		Screw		Appelez-nous	-
23	3189152		Bracket, Stiffening		Appelez-nous	-
25	4454440		Element, Surface (includes No.16) (2100w Right Rear)		Appelez-nous	-
25	4454441		Element, Surface (includes No.16) (2400w Left Rear)		Appelez-nous	-
25	4454438		Element, Surface (includes No.16) (1200w Left Front)		Appelez-nous	-
25	4454439		Element, Surface (includes No.16) (1400w Right Front)		Appelez-nous	-
29	4159456		Screw		Appelez-nous	-
29	3188844		Shield, Heat		Appelez-nous	-
30	3189174		Bracket		Appelez-nous	-
31	3188102		Shield, Heat		Appelez-nous	-
32	3188158		Plate, Interior		Appelez-nous	-
32	4159456		Screw		Appelez-nous	-
33	4159456		Screw		Appelez-nous	-
33	3189159		Plate, End		Appelez-nous	-
34	3189036		Plate Louver		Appelez-nous	-
34	4159456		Screw		Appelez-nous	-
35	3189273		Cover, Conduit		Appelez-nous	-
