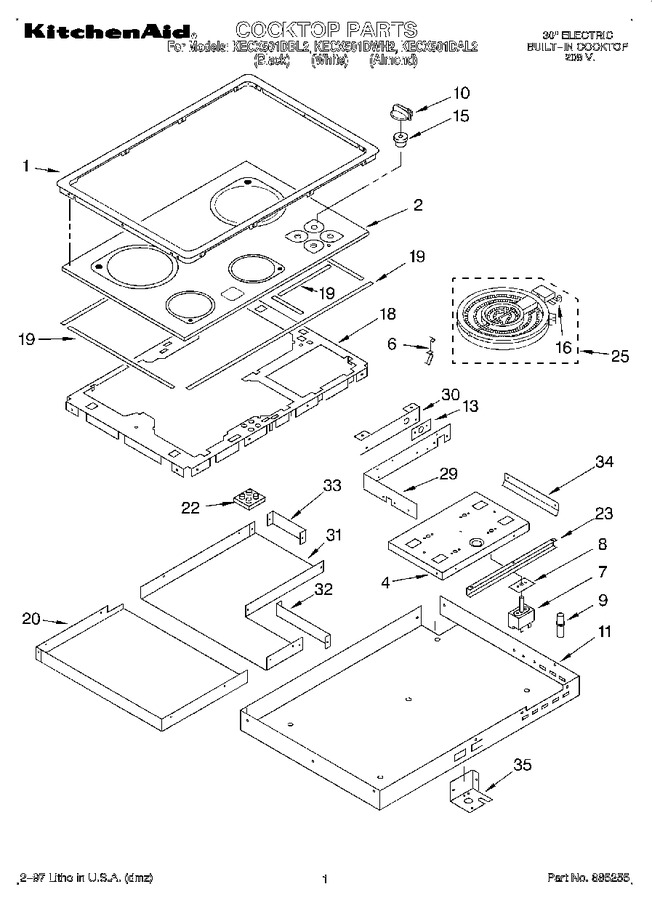

SELECT A DIAGRAM

01 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3190935		Trim Ring, Cooktop (almond)		Appelez-nous	-
1	3190934		Trim Ring, Cooktop (white)		Appelez-nous	-
1	3190933		Trim Ring, Cooktop (black)		Appelez-nous	-
2	3188893		Cooktop, Glass (almond)		Appelez-nous	-
2	3188255		Cooktop, Glass (black)		Appelez-nous	-
2	3188256		Cooktop, Glass (white)		Appelez-nous	-
4	3188101		Bracket, Switch Mounting		Appelez-nous	-
6	3189165		Spring, Locator (8)		Appelez-nous	-
6	WP486754		Screw (8)   (Replaces: 246119)				$ 7.21
7	WP3191049		Switch, Infinite (use W/1200w Left Front Burner)   (Replaces: 3191049)				$ 157.76
7	WP4454541		Switch, Infinite (use W/2100w Right Rear Burner)   (Replaces: 4454541)				$ 156.93
7	4454542		Switch, Infinite (use W/2400w Left Rear Burner)		Appelez-nous	-
8	3183956		Seal, Switch				$ 43.89
8	WP486579		Screw   (Replaces: 311865)				$ 7.10
9	4454437		Light, Indicator		Appelez-nous	-
10	9750372FT		Knob Assembly (4) (almond)		Appelez-nous	-
10	WP9750372FW		Knob Assembly (4) (white)   (Replaces: 9750372FW)				$ 18.89
10	WP9750372FF		Knob Assembly (4) (black)   (Replaces: 9750372FF)			Immediately	$ 19.80
11	3188754		Box, Burner		Appelez-nous	-
11	4159456		Plug Screws (5)		Appelez-nous	-
13	4159456		Screw		Appelez-nous	-
13	3188533		Grommet		Appelez-nous	-
15	3182435		Seal, Switch (4)		Appelez-nous	-
16	3189739		Switch, Limiter (use W/3189907 Element)		Appelez-nous	-
16	3189663		Switch, Limiter (use W/3189903 Element)		Appelez-nous	-
16	3190253		Switch, Limiter (use W/3189904 Element)		Appelez-nous	-
16	3190252		Switch, Limiter (use W/3189906 Element)		Appelez-nous	-
18	3191141		Plate, Backer		Appelez-nous	-
19	3188852		Seal, Silicone (controls (2))		Appelez-nous	-
19	3185590		Seal, Silicone (front & Back (2))		Appelez-nous	-
19	3185589		Seal, Silicone (sides (2))		Appelez-nous	-
20	3187753		Shield, Heat		Appelez-nous	-
20	4159456		Screw		Appelez-nous	-
22	3190949		Lamp, Hot Surface Indicator		Appelez-nous	-
22	4168863		Screw		Appelez-nous	-
23	4159456		Screw		Appelez-nous	-
23	3189152		Bracket, Stiffening		Appelez-nous	-
25	3189906		Element, Surface (includes No.16) (2100w Right Rear)		Appelez-nous	-
25	3189903		Element, Surface (includes No.16) (1200w Left Front)		Appelez-nous	-
25	3189904		Element, Surface (includes No.16) (1400w Right Front)		Appelez-nous	-
25	3189907		Element, Surface (includes No.16) (2400w Left Rear)		Appelez-nous	-
29	3188844		Shield, Heat		Appelez-nous	-
29	4159456		Screw		Appelez-nous	-
30	4159456		Screw		Appelez-nous	-
30	3189174		Bracket		Appelez-nous	-
31	3188102		Shield, Heat		Appelez-nous	-
32	3188158		Plate, Interior		Appelez-nous	-
32	4159456		Screw		Appelez-nous	-
33	3189159		Plate, End		Appelez-nous	-
33	4159456		Screw		Appelez-nous	-
34	3189036		Plate Louver		Appelez-nous	-
34	4159456		Screw		Appelez-nous	-
35	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
35	3189273		Cover, Conduit		Appelez-nous	-
35	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
35	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
35	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
35	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
35	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
35	242829		Wire, Red 12 Ga. 150~		Appelez-nous	-
35	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
35	242831		Wire (14 Ga. 200 C Red)				$ 342.23
35	242826		Wire, White 14 Ga. 150~		Appelez-nous	-
35	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
35	242832		Wire, Yellow 14 Ga. 200~		Appelez-nous	-
35	CERAMABRYTE		Cleaner, Glass   (Replaces: 3184477)			Immediately	$ 9.95
	LIT3190372		Wiring Diagram		Appelez-nous	-
	3189757		Wiring Harness Surface Unit		Appelez-nous	-
	3150320		Mounting Screws (clamp (2))		Appelez-nous	-
	258644		Mounting Screws (10a X 2 (2))		Appelez-nous	-
	3172515		Hardware Asm.		Appelez-nous	-
	LIT4454475		Use & Care Guide		Appelez-nous	-
	LIT4454472		Installation Instructions		Appelez-nous	-
	3179589		Tie, Wire		Appelez-nous	-
