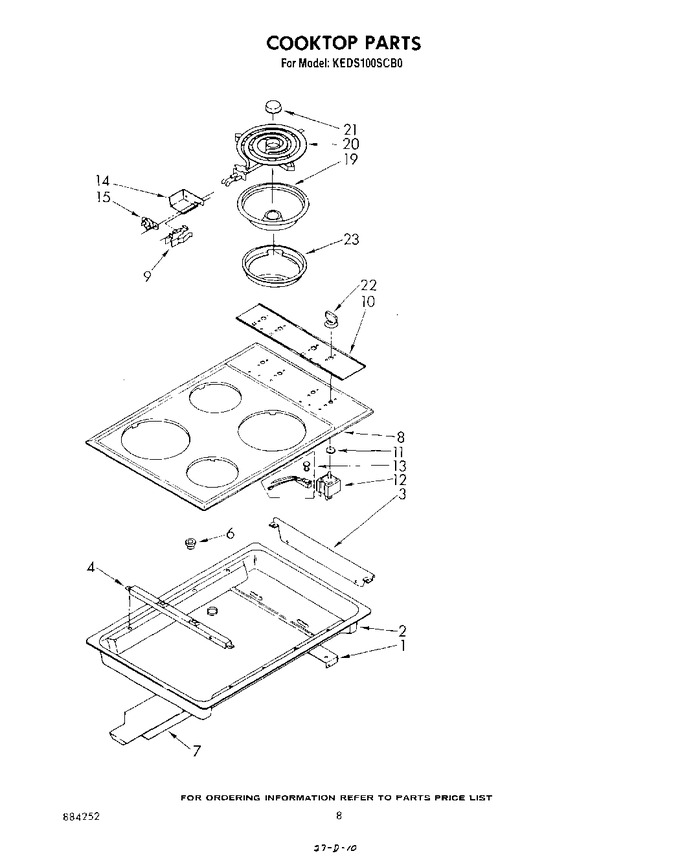

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310718		Support, Burner Box (2)		Appelez-nous	-
1	WP488729		Screw, 8 - 18 X .50 (6)   (Replaces: 3148107)			Immediately	$ 7.45
2	311019		Burner Box		Appelez-nous	-
2	WP488729		Screw, 8 - 18 X .50 (4)   (Replaces: 3148107)			Immediately	$ 7.45
3	310716		Shield, Switch		Appelez-nous	-
3	WP488729		Screw, 8 - 18 X .50 (2)   (Replaces: 3148107)			Immediately	$ 7.45
4	WP488729		Screw, 8 - 18 X .50 (6)   (Replaces: 3148107)			Immediately	$ 7.45
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	3147565		Cover, Top Rear		Appelez-nous	-
7	WP488729		Screw, 8 - 18 X .50 (3)   (Replaces: 3148107)			Immediately	$ 7.45
8	312318		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
8	166681		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
8	3148039		Cooktop, Brushed Chrome		Appelez-nous	-
9	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 7.47
9	330031		Clip, Receptacle (4)   (Replaces: 312606)			Immediately	$ 17.93
10	3147677		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	W10900107		Switch, Infinite (4) (use W/6`` Surface Unit (2))   (Replaces: 3148956)			Immediately	$ 51.87
12	WP486579		Switch, Infinite (4) (screw, 8-32 X 5/16 (8))   (Replaces: 311865)				$ 7.10
12	W10900107		Switch, Infinite (4) (use W/8`` Surface Unit (2))   (Replaces: 3148957)			Immediately	$ 51.87
13	313461		Indicator Light (lens, No.313602)		Appelez-nous	-
14	3147830		Bracket, Sensor		Appelez-nous	-
15	WP313808		Screw, 6-32 X 1/4 (3)   (Replaces: 313808)				$ 7.47
15	3147833		Thermostat				$ 0.01
19	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 58.49
19	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 58.49
20	WP660532		Unit, Surface (6``)   (Replaces: 660532)			Immediately	$ 45.10
20	WP660532		Unit, Surface (6``) (alt.)   (Replaces: 313964)			Immediately	$ 45.10
20	WP660532		Unit, Surface (6``) (alt.)   (Replaces: 309334)			Immediately	$ 45.10
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	314223		Knob, Control (4)		Appelez-nous	-
23	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 85.44
23	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 89.93
	WP660533		(alt.)   (Replaces: 313963)			Immediately	$ 40.21
	WP660533		Unit, Surface (8``)   (Replaces: 660533)			Immediately	$ 40.21
	WP660533		(alt.) (includes Illus. 21)   (Replaces: 309340)			Immediately	$ 40.21
