SELECT A DIAGRAM

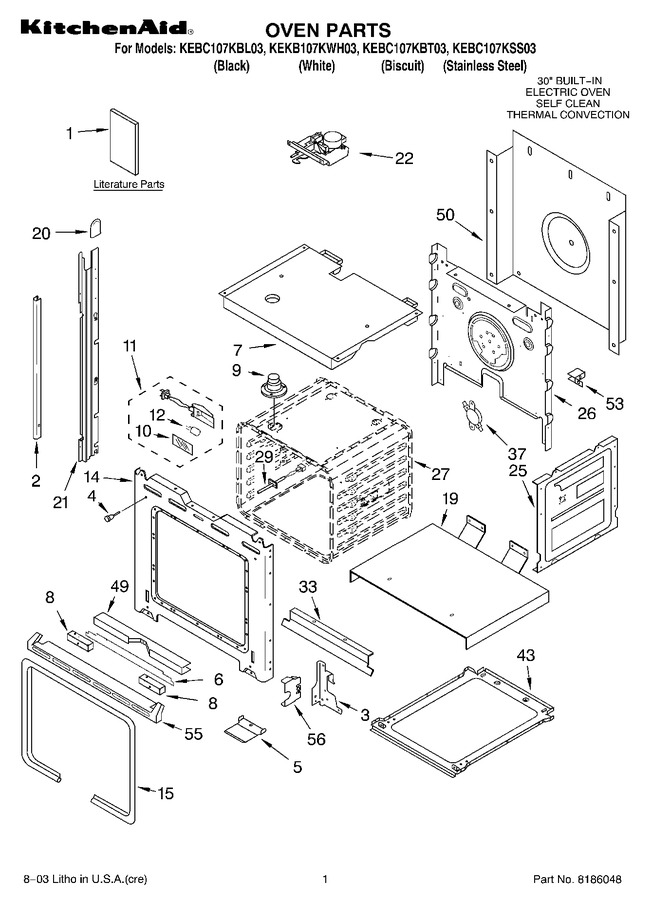

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4455993		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300886		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT8302067		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT8301927		Literature Parts (installation Undercounter)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT8301928		Literature Parts (installation, Mwo Trim Kit)		Appelez-nous	-
2	W10144984		Trim, Side (left Hand) (stainless Steel)   (Replaces: 4452080)				$ 133.34
2	4455428		Trim, Side (left Hand) (white)				$ 104.48
2	4455376		Trim, Side Left (black)		Appelez-nous	-
2	WPW10144983		Trim, Side (right Hand) (stainless Steel)   (Replaces: 4452079)				$ 148.28
2	4455424		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
2	4455378		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
2	WP8281236		(trim, Side (left Hand)) (screw)   (Replaces: 8281236)				$ 7.34
2	4455377		Trim, Side Right (black)				$ 232.13
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
4	4448520		Bumper, Door				$ 20.03
5	4455807		Deflector, Vent Box		Appelez-nous	-
6	4452337		Insulation		Appelez-nous	-
7	4455865		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
8	4452490		Spacer, Foam				$ 34.83
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 110.21
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 12.81
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 103.38
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 63.62
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 67.10
19	4451478		Support, Insulation				$ 54.10
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 115.01
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 114.07
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.07
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 7.34
22	WPW10195934		Latch, Motorized   (Replaces: 8302157)			Immediately	$ 300.34
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 135.62
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 94.50
33	4452496		Deflector, Vent		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 4452223)			Immediately	$ 77.01
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
55	4455443		Trim, Bottom (black)		Appelez-nous	-
55	4455445		Trim, Bottom (white)		Appelez-nous	-
55	4455447		Trim, Bottom (biscuit)		Appelez-nous	-
55	4455147		Trim, Bottom (stainless Steel)				$ 96.52
56	4450365		Insulation, Back				$ 70.95
56	4452152		Bracket, Mounting Bottom Trim				$ 31.66
56	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 112.37
