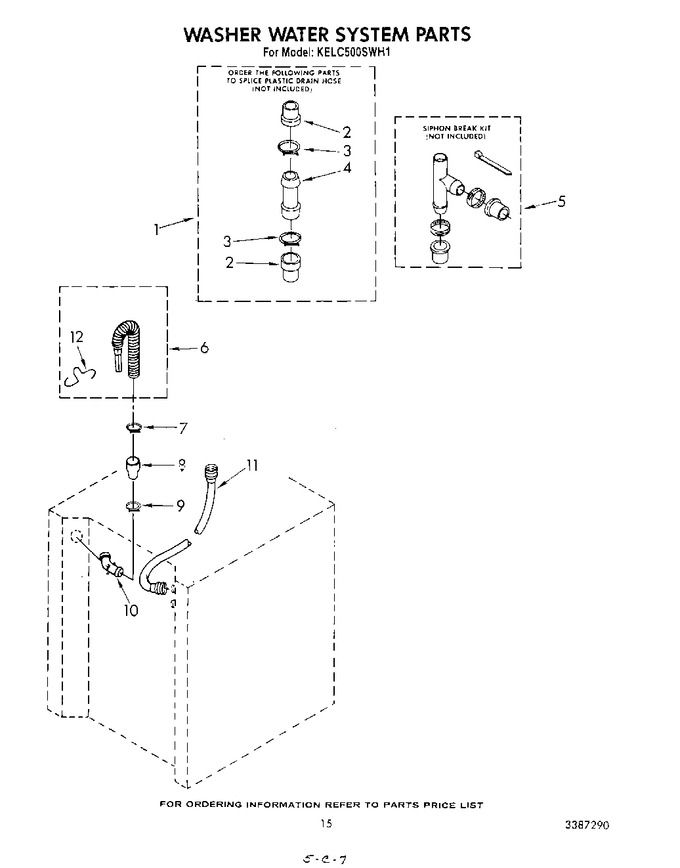

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 285442 | Connector Kit, Plastic Drain Hose |
|
$ 88.85 | |||||
| 2 | WP357239 | Sleeve Kit (contains 2 Sleeves) (Replaces: 357239) |
|
$ 71.41 | |||||
| 3 | WP285655 | Clamp, Hose (Replaces: 370447) |
|
Immediately | $ 7.93 | ||||
| 4 | WP16272 | Connector (Replaces: 16272) |
|
$ 7.39 | |||||
| 5 | 76660 | Siphon Break Kit (not Included) (Replaces: 285320) |
|
Immediately | $ 125.92 | ||||
| 6 | 285664 | Hose, Corrugated (Replaces: 387325) |
|
Immediately | $ 37.88 | ||||
| 7 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.72 | ||||
| 8 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 81.35 | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 10 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 66.72 | |||||
| 11 | WP89503 | Hose-inlet (Replaces: 660028) |
|
Immediately | $ 21.68 | ||||
| 12 | 357247 | Retainer, Wire |
|
- |
