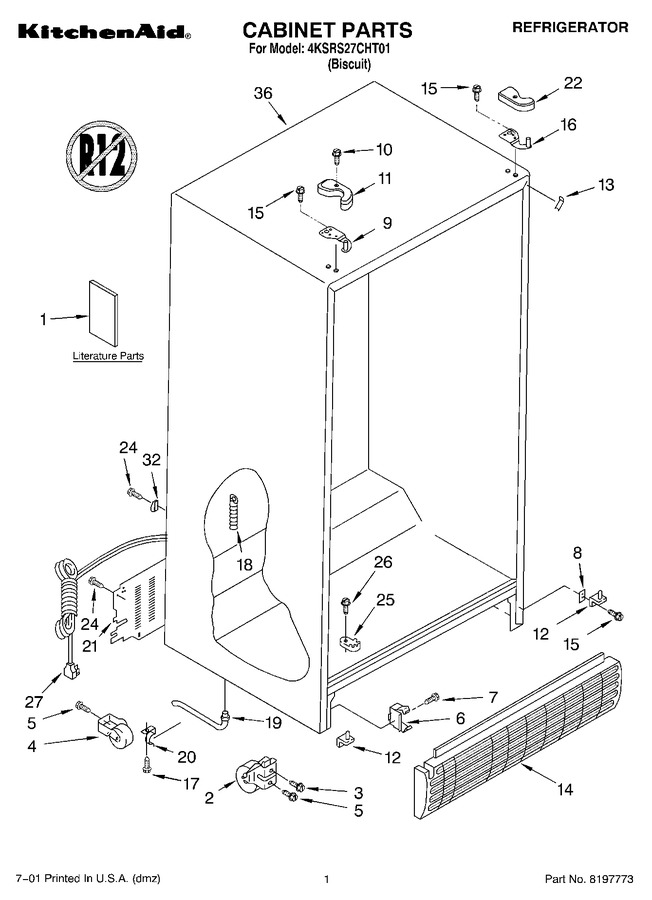

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2214417		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2214768		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628371		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	WP489478		Screw   (Replaces: 489478)				$ 7.36
8	WP2181911		Shim (1)   (Replaces: 2156056)				$ 31.38
8	2209697		Shim (1)				$ 41.25
9	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 90.27
10	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
11	2203407T		Hinge Cover		Appelez-nous	-
12	8201707		Hinge Bottom   (Replaces: 2217075)				$ 87.71
13	2196150		Filler, Wrapper		Appelez-nous	-
14	W10283947		Grille   (Replaces: 2198470T)				$ 33.91
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 92.82
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 48.11
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 29.61
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.15
21	2214571		Cover, Unit		Appelez-nous	-
22	2203408T		Hinge Cover		Appelez-nous	-
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
25	WPW10329686		Door Closer, Lower Cam   (Replaces: 2155311)			Immediately	$ 5.31
26	WP489483		Screw   (Replaces: 489483)				$ 10.27
27	2205329		Service Cord		Appelez-nous	-
32	489348		Clamp		Appelez-nous	-
