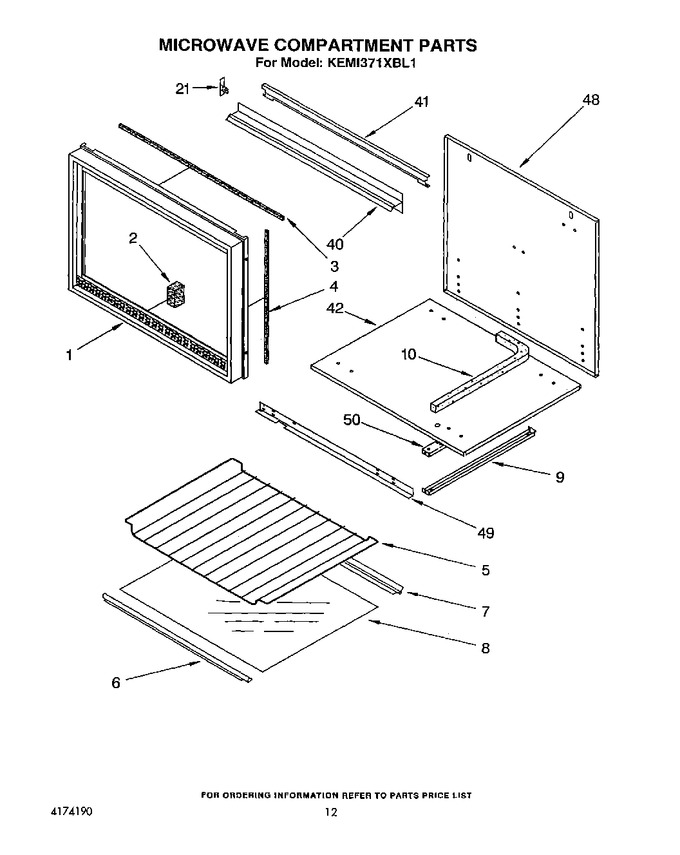

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3150686		Frame, Outer		Appelez-nous	-
2	3182384		Block, Foam		Appelez-nous	-
3	3182380		Seal, Foam (top)		Appelez-nous	-
4	3182382		Seal, Foam (side)		Appelez-nous	-
4	3179847		Screw		Appelez-nous	-
5	313663		Rack, Wire		Appelez-nous	-
6	313614		Trim, Shelf (front)		Appelez-nous	-
7	313615		Trim, Shelf (rear)		Appelez-nous	-
8	313639		Shelf, Cavity		Appelez-nous	-
9	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
9	3179973		Rail, Microwave		Appelez-nous	-
10	3180456		Seal, Foam		Appelez-nous	-
21	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
21	3181733		Insert, Middle Vent Trim		Appelez-nous	-
40	3181965		Vent, Middle Trim		Appelez-nous	-
41	3181848		Brace, Center Vent		Appelez-nous	-
41	4168863		Screw (2)		Appelez-nous	-
41	3180022		Screw (4)		Appelez-nous	-
42	3180330		Support, Module		Appelez-nous	-
42	WP90767		Screw (12)   (Replaces: 300890)			Immediately	$ 7.43
48	3180336		Back, Microwave Compartment		Appelez-nous	-
48	WP90767		Screw (9)   (Replaces: 300890)			Immediately	$ 7.43
49	3182764		Ext. Module Support		Appelez-nous	-
49	WP90767		Screw (10)   (Replaces: 300890)			Immediately	$ 7.43
50	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
50	3179972		Rail, Chassis (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
