SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Oven


04 - Convection Fan


05 - Lower Oven


06 - Internal Convection Oven


07 - Magnetron And Air Flow


08 - Stirrer Drive


09 - Microwave Compartment

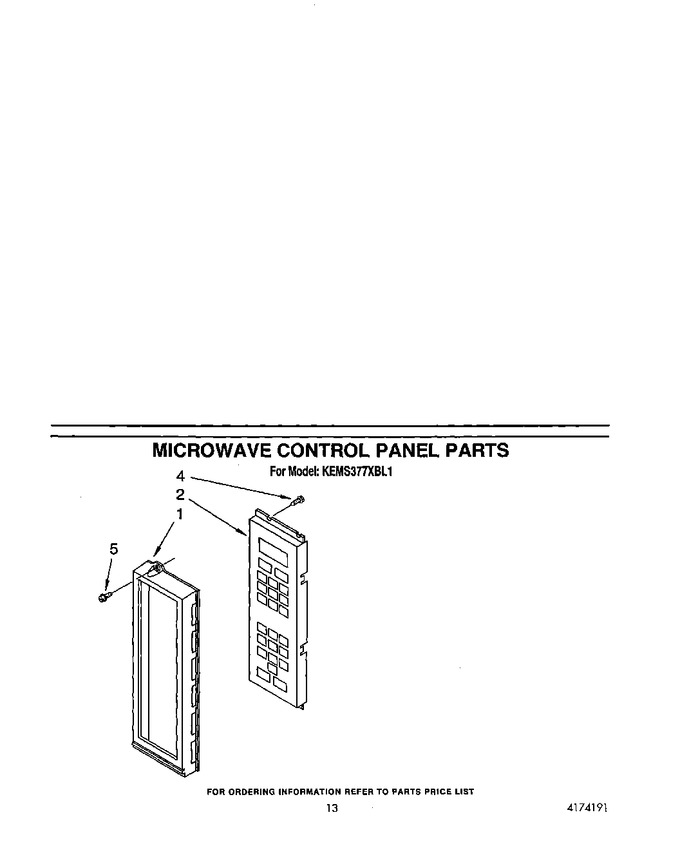

10 - Microwave Control Panel


11 - Microwave Door And Latch


12 - Component Shelf And Latch


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3182407		Frame, Control Panel (black Unit)		Appelez-nous	-
1	3182409		Frame, Control Panel (white Unit)		Appelez-nous	-
2	3182563		Module, Control (black Unit)		Appelez-nous	-
2	3182564		Module, Control (white Unit)		Appelez-nous	-
4	313818		Screw (6)		Appelez-nous	-
5	313679		Screw 8-32 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
