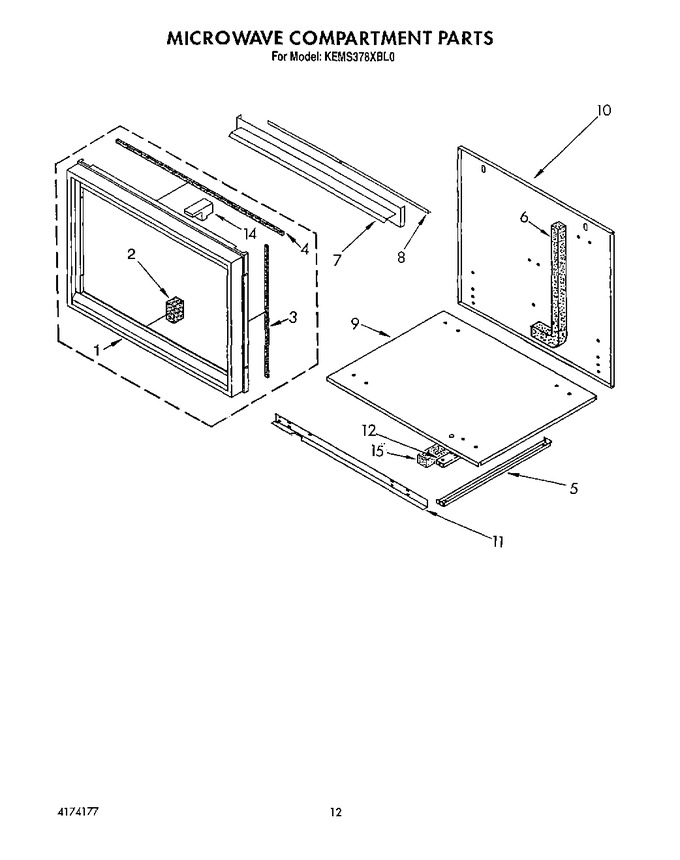

09 - Microwave Compartment


10 - Cabinet And Stirrer, Optional


11 - Cabinet


12 - Door And Latch


13 - Microwave Control Panel


14 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3182290		Frame, Outer (black Model)		Appelez-nous	-
1	3182291		Frame, Outer (white Model)		Appelez-nous	-
1	3182292		Frame, Outer (almond Model)		Appelez-nous	-
2	3182384		Block, Foam		Appelez-nous	-
3	3182380		Seal, Foam (side) (black Model)		Appelez-nous	-
3	3182381		Seal, Foam (side) (white Or Almond Model)		Appelez-nous	-
4	3179847		Seal, Foam (top) (screw)		Appelez-nous	-
4	3182382		Seal, Foam (top) (black Model)		Appelez-nous	-
4	3182383		Seal, Foam (top) (white Or Almond Model)		Appelez-nous	-
5	3181067		Screw (4)		Appelez-nous	-
5	3179973		Rail, Microwave		Appelez-nous	-
6	3180456		Seal, Foam		Appelez-nous	-
7	3177755		Vent, Middle Trim (black Model)		Appelez-nous	-
7	3177753		Vent, Middle Trim (white Or Almond Model)		Appelez-nous	-
8	4168863		Screw (2)		Appelez-nous	-
8	3182481		Brace, Center Vent		Appelez-nous	-
9	3180330		Support, Module		Appelez-nous	-
9	WP90767		Screw (12)   (Replaces: 300890)			Immediately	$ 7.43
10	3180336		Back, Microwave Compartment		Appelez-nous	-
10	WP90767		Screw (9)   (Replaces: 300890)			Immediately	$ 7.43
11	WP90767		Screw (10)   (Replaces: 300890)			Immediately	$ 7.43
11	3182764		Ext. Module Support		Appelez-nous	-
12	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
12	3179972		Rail, Chassis		Appelez-nous	-
14	3182387		Block, Foam		Appelez-nous	-
15	3180454		Seal, Foam		Appelez-nous	-
