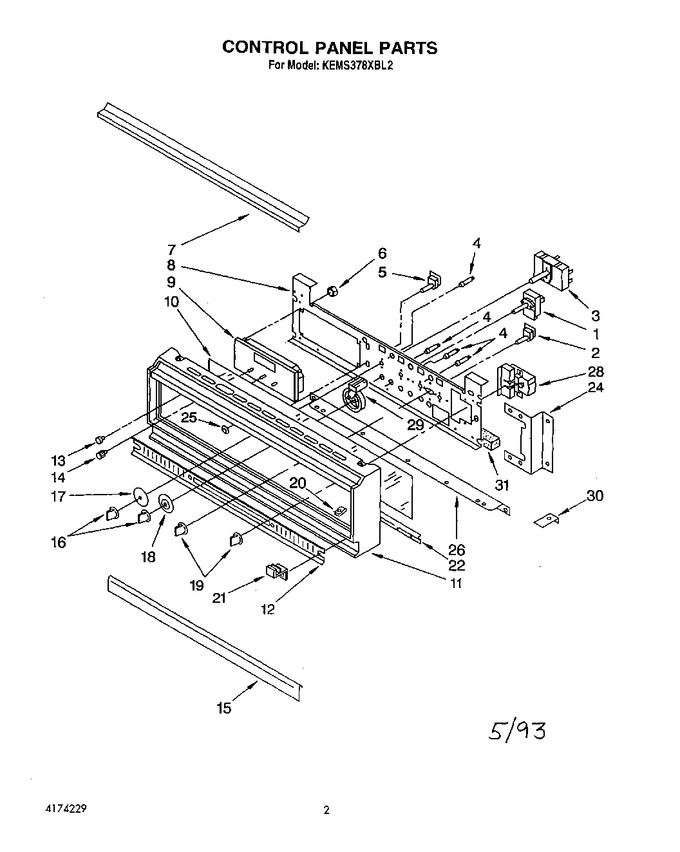

01 - Control Panel, Literature


02 - Oven


03 - Convection Fan


04 - Component Shelf And Latch


05 - Oven Door


06 - Internal Oven


07 - Microwave Compartment


08 - Magnetron And Airflow


09 - Cabinet And Stirrer, Optional


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	155023		Screw (2)			Immediately	$ 7.91
1	3178274		Thermostat, Upper		Appelez-nous	-
2	3178126		Switch, Rotory		Appelez-nous	-
3	3178236		Switch, Selector		Appelez-nous	-
3	155023		Screw (2)			Immediately	$ 7.91
4	4168598		Light, Indicator		Appelez-nous	-
5	3179891		Switch, Oven Light (black)		Appelez-nous	-
5	3179708		Switch, Oven Light (white Or Almond Model)		Appelez-nous	-
6	98788		Nut, Timer (4)		Appelez-nous	-
7	3180131		Insert, Top (white)		Appelez-nous	-
7	4173163		Insert, Top (black)		Appelez-nous	-
7	3180130		Insert, Top (almond)		Appelez-nous	-
8	3177805		Control Panel		Appelez-nous	-
9	3148111		Timer, Electronic		Appelez-nous	-
10	3181285		Glass, Control Panel (black)		Appelez-nous	-
10	3181601		Glass, Control Panel (white)		Appelez-nous	-
10	3181602		Glass, Control Panel (almond)		Appelez-nous	-
11	3177763		Frame, Control Panel (white)		Appelez-nous	-
11	3177764		Frame, Control Panel (almond)		Appelez-nous	-
11	3177762		Frame, Control Panel (black)		Appelez-nous	-
12	3179847		Trim, Control Panel (screw (4))		Appelez-nous	-
12	3180447		Trim, Control Panel (white Model)		Appelez-nous	-
12	3180448		Trim, Control Panel (almond Model)		Appelez-nous	-
12	3180449		Trim, Control Panel (black Model)		Appelez-nous	-
13	3179705		Knob, Timer (2)		Appelez-nous	-
14	3179704		Knob, Timer		Appelez-nous	-
15	3177972		Door, Latch Handle		Appelez-nous	-
15	4170323		Screw (5)		Appelez-nous	-
15	3179847		Screw		Appelez-nous	-
16	3178400		Knob, Control (4)				$ 15.79
17	3178265		Disc, Selector		Appelez-nous	-
18	3178481		Disc, Thermostat (self Clean) (2)		Appelez-nous	-
19	4163840		Knob		Appelez-nous	-
20	4168838		Nut (3)		Appelez-nous	-
21	3177971		Hinge, Door (2)		Appelez-nous	-
21	3179847		Screw (2)		Appelez-nous	-
22	4159456		Screw (6)		Appelez-nous	-
22	4167590		Retainer, Glass		Appelez-nous	-
24	3177747		Bracket, Control Panel		Appelez-nous	-
24	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
25	4169372		Bezel, Switch (black)		Appelez-nous	-
25	3179707		Bezel, Switch (white Or Almond Model)		Appelez-nous	-
26	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
26	3177650		Support, Frame		Appelez-nous	-
28	254225		Screw (2)		Appelez-nous	-
28	4173611		Indicator, Light Meat Probe		Appelez-nous	-
29	3179778		Backlight (2)		Appelez-nous	-
30	3180844		Clip, Spacer		Appelez-nous	-
31	3180458		Seal, Foam		Appelez-nous	-
	LIT4174229		Repair Parts List		Appelez-nous	-
	LIT3180512		Installation Instructions		Appelez-nous	-
	LIT3180509		Tech Sheet		Appelez-nous	-
	LIT3150143		Chart, Quick Ref.		Appelez-nous	-
	LIT4313007		Cookbook Microwave		Appelez-nous	-
	LIT4313011		Label, Auto Cook Guide		Appelez-nous	-
	LIT4313012		Label, Defrost Guide		Appelez-nous	-
	LIT3150693		Cookbook T/c Oven		Appelez-nous	-
	LIT3180511		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3180510		Use & Care Guide (oven)		Appelez-nous	-
