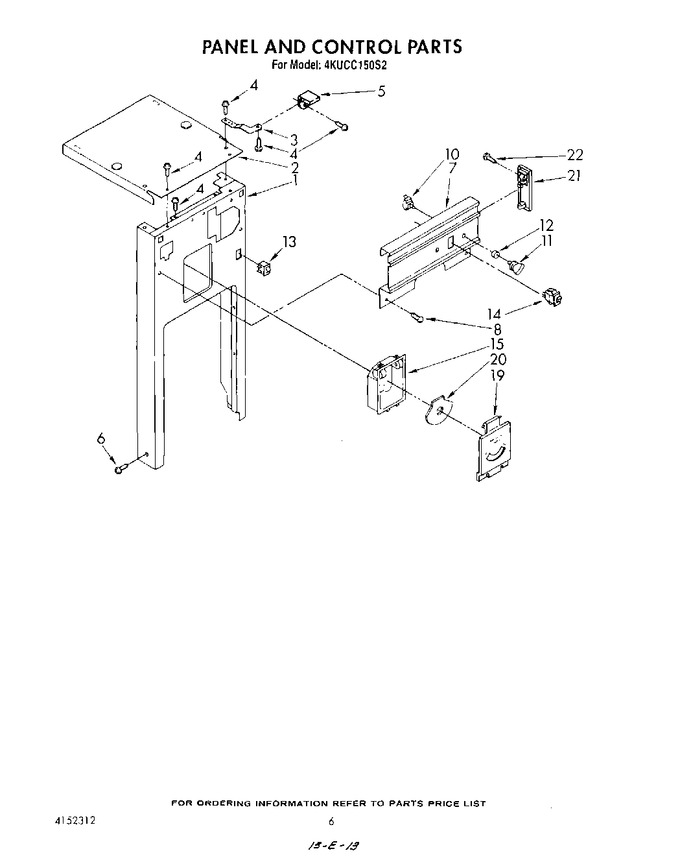

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152069		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 608785)			Immediately	$ 22.03
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 608784)			Immediately	$ 22.03
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 7.36
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 25.68
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 7.56
7	4149810		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 221.83
11	776594		Knob, Rotary Switch				$ 27.24
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 11.55
13	WP4387911		Switch, Drawer Tilt   (Replaces: 4152060)			Immediately	$ 37.48
14	WP4314961		Switch, Rocker (solid Pack)   (Replaces: 4150532)				$ 84.56
15	777642		Compartment, Air Flow		Appelez-nous	-
19	4147744		Cover, Air Flow		Appelez-nous	-
20	608782		Dail, Air Flow		Appelez-nous	-
21	780179		End Cap, Escutcheon (l.h.)		Appelez-nous	-
21	780180		End Cap, Escutcheon R.h.		Appelez-nous	-
22	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.56
