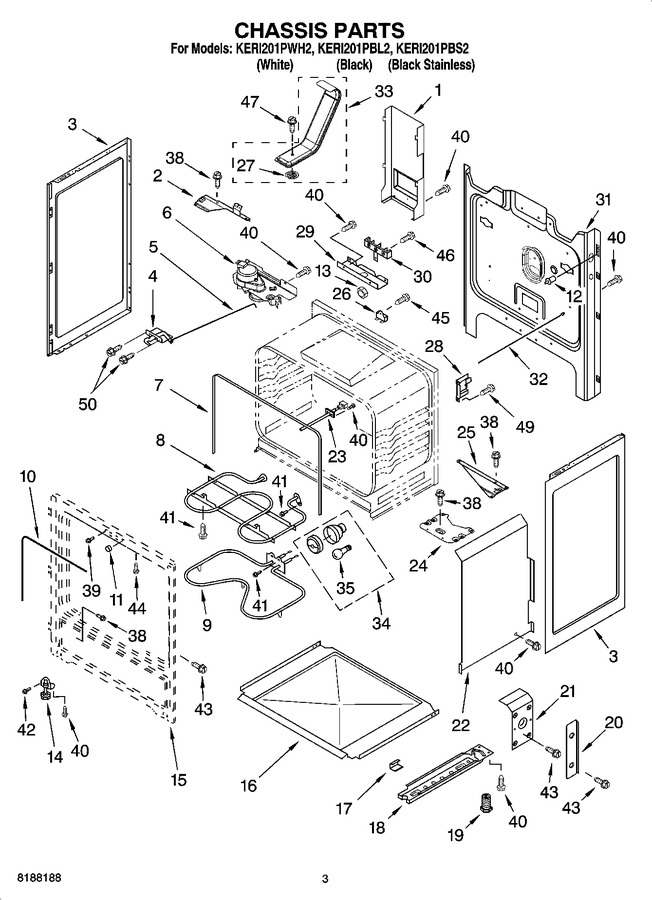

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 125.64 | |||||
| 2 | 8273905 | Support, Corner Lr |
|
- | |||||
| 3 | W11730303 | Panel, Side (2) (black-textured) (Replaces: 8053832) |
|
Immediately | $ 160.65 | ||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 182.19 | |||||
| 4 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 230.72 | |||||
| 5 | 3196961 | Rod, Latch |
|
- | |||||
| 6 | WPW10107820 | Latch Ass`y, Rear (Replaces: 9757241) |
|
$ 278.60 | |||||
| 7 | 3195737 | Seal, Oven Flange |
|
- | |||||
| 8 | WP9757341 | Element, Broil (Replaces: 9757341) |
|
Immediately | $ 127.83 | ||||
| 9 | WPW10308477 | Element, Bake (Replaces: 9758541) |
|
Immediately | $ 64.67 | ||||
| 10 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 11 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 12 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 13 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.77 | |||||
| 14 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 78.41 | |||||
| 16 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 17 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 18 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 56.39 | |||||
| 19 | WPW10058460 | Foot, Rear (2) (Replaces: 9761935) |
|
Immediately | $ 7.42 | ||||
| 20 | 3196091 | Shield, Outer (2) |
|
- | |||||
| 21 | 3196092 | Shield, Inner (2) |
|
- | |||||
| 22 | 8523803 | Retainer, Side (2) |
|
- | |||||
| 23 | WPW10181986 | Sensor, Oven (Replaces: 8273902) |
|
Immediately | $ 96.15 | ||||
| 24 | 3195736 | Support, Front (2) |
|
- | |||||
| 25 | 3195987 | Support, Corner Rr |
|
- | |||||
| 26 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 27 | 9761301 | Screen, Catalyst |
|
$ 133.11 | |||||
| 28 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.92 | |||||
| 29 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 30 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 43.16 | ||||
| 31 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 32 | 9757239 | Rod - Door Switch, Rear Mount |
|
$ 86.73 | |||||
| 33 | WPW10134285 | Vent Tube Assy (Replaces: 9761300) |
|
Immediately | $ 236.70 | ||||
| 34 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 35 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 38 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 39 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 40 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 41 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| 42 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 16.74 | |||||
| 43 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 7.42 | |||||
| 44 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 45 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 46 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 47 | WP489491 | Screw (Replaces: 3196566) |
|
$ 6.57 | |||||
| 49 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 50 | 8053915 | Insulation, Vent (Replaces: 8272613) |
|
$ 11.75 | |||||
| 50 | W11169708 | Screw (2) (Replaces: 3196560) |
|
$ 13.36 | |||||
| 50 | WPW10208653 | Insulation, Wrap (Replaces: 8272616) |
|
Immediately | $ 52.37 | ||||
| 50 | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 103.60 |
