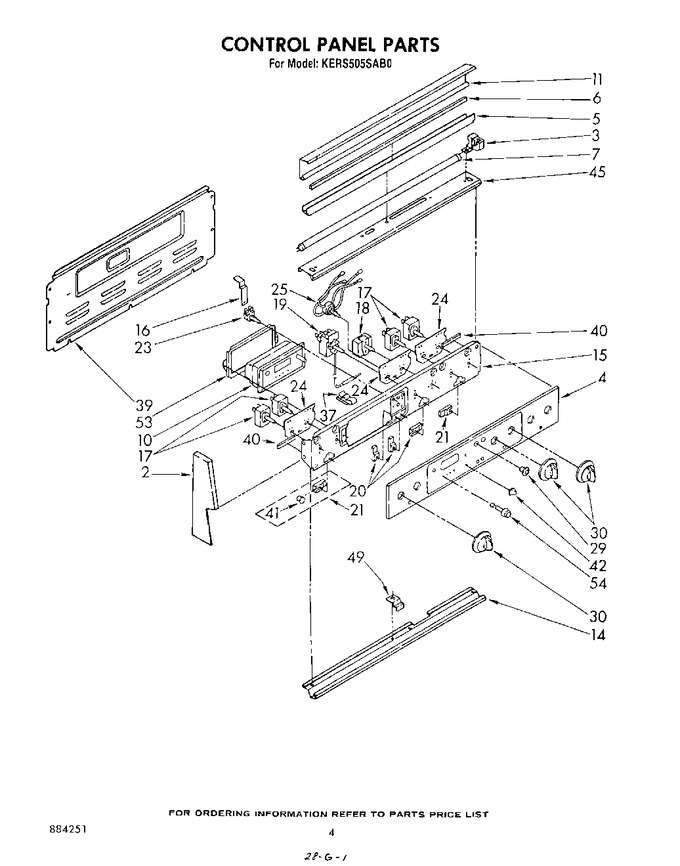

03 - Control Panel


04 - Door And Drawer


05 - Oven , Literature And Optional


06 - Section


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3147087		End Cap L.h.		Appelez-nous	-
2	W11693756		Screw, 8-18 X 5/8 (4)   (Replaces: 688983)			Immediately	$ 13.28
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3147088		End Cap R.h.		Appelez-nous	-
3	313194		Socket, Fluorescent R.h.		Appelez-nous	-
3	3147820		Socket, Fluorescent L.h.		Appelez-nous	-
4	3147156		Control Panel, Glass		Appelez-nous	-
5	313398		Backguard, Lamp		Appelez-nous	-
6	313444		Protector, Backguard		Appelez-nous	-
7	313110		Lamp, Fluorescent		Appelez-nous	-
10	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
10	3147714		Timer, Digital		Appelez-nous	-
11	3147699		Cover, Lamp		Appelez-nous	-
14	313424		Trim, Bottom		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.62
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	3147063		Bracket, Control		Appelez-nous	-
16	313312		Brace, Control Bracket		Appelez-nous	-
16	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
17	314267		Switch, Infinite (use W/6`` Surface Unit (2))		Appelez-nous	-
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.10
17	314268		Switch, Infinite (use W/8`` Surface Unit (2))		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.10
18	312290		Switch, Selector (5 Position)		Appelez-nous	-
19	313862		Thermostat, Oven Pyro		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
20	3147192		Light, Indicator (3) (oven, Lock, Clean) (includes Illus. 41)		Appelez-nous	-
21	313106		Light, Indicator (surface Unit) (2) (includes Illus. 41)		Appelez-nous	-
23	312581		Switch, Oven Light		Appelez-nous	-
24	3147033		Bracket, Switch		Appelez-nous	-
24	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 6.37
25	313348		Switch, Fluorescent Light		Appelez-nous	-
25	255912		Nut, 3/8 X 27		Appelez-nous	-
29	313030		Bezel, Switch (2)		Appelez-nous	-
30	314222		Knob, Control (6)		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 7.62
39	313195		Rear Cover Control Panel		Appelez-nous	-
40	308299		Seal, Foam (2)		Appelez-nous	-
41	311688		Lens, Amber (5)		Appelez-nous	-
42	313523		Knob, Timer (3)				$ 13.66
45	313199		Trim, Socket (top)		Appelez-nous	-
49	246131		Screw, 6ab X 3/8		Appelez-nous	-
49	313482		Support, Wedge		Appelez-nous	-
53	313475		Timer Bracket		Appelez-nous	-
54	314132		Set Button (4)		Appelez-nous	-
