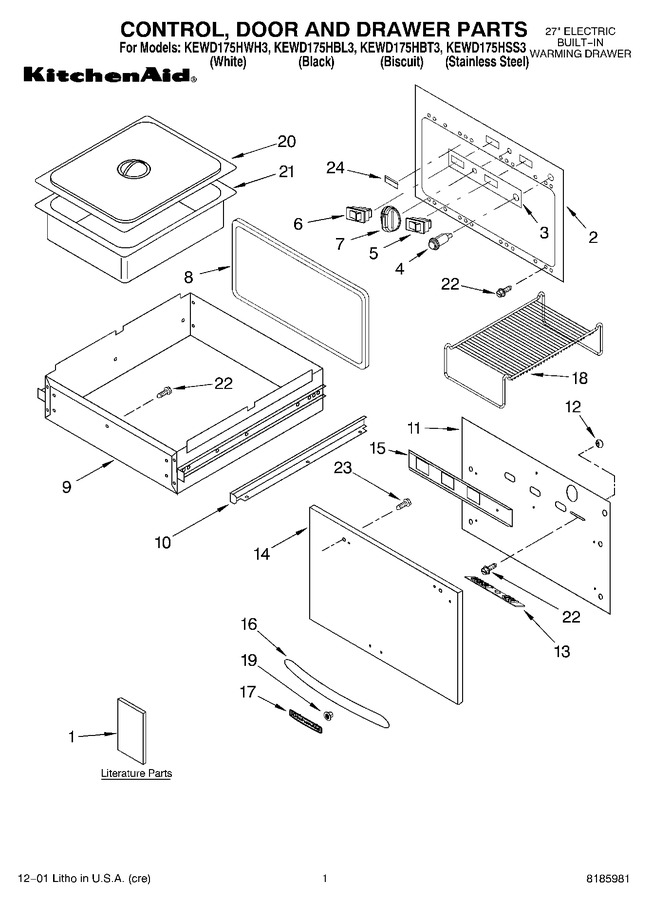

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300562		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8300560		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8300561		Literature Parts (installation Instructions)		Appelez-nous	-
2	4453041		Panel, Control		Appelez-nous	-
3	4453049		Escutchen, Control Panel		Appelez-nous	-
4	4452824		Light, Indicator		Appelez-nous	-
5	4452841		Switch, Rocker Spst Illuminated				$ 66.50
6	WP4452842		Switch, Rocker Spst   (Replaces: 4452842)				$ 94.01
7	W10854530		Knob, Thermostat   (Replaces: 4455984)				$ 15.71
8	4453038		Gasket, Drawer		Appelez-nous	-
9	4452978		Drawer Assembly		Appelez-nous	-
10	4453105		Adapter		Appelez-nous	-
11	8301003		Liner, Drawer		Appelez-nous	-
12	4452820		Knob, Ball		Appelez-nous	-
13	4452830		Label, Moist/dry		Appelez-nous	-
14	4453013		Door, Front Assy (white)		Appelez-nous	-
14	4453015		Door, Front Assy (stainless Steel)		Appelez-nous	-
14	4453012		Door, Front Assy (black)		Appelez-nous	-
14	4453014		Door, Front Assy (biscuit)		Appelez-nous	-
15	8301005		Vent, Slide		Appelez-nous	-
16	4452087		Handle, Drawer (stainless Steel)		Appelez-nous	-
16	4452500		Handle, Drawer (black)		Appelez-nous	-
16	4452870		Handle, Drawer (biscuit)		Appelez-nous	-
16	4452501		Handle, Drawer (white)		Appelez-nous	-
17	2005292		Nameplate				$ 52.20
18	4452821		Rack, Warming		Appelez-nous	-
19	4453107		Palnut		Appelez-nous	-
20	4452853		Cover, Pan		Appelez-nous	-
21	4452849		Pan, Warming		Appelez-nous	-
22	WP3196557		Screw, 8-32 X 1/2   (Replaces: 3196537)			Immediately	$ 7.16
23	WPW10132940		Screw, 8-32 X 9/16   (Replaces: 3196184)				$ 9.11
24	4456038		Insulation		Appelez-nous	-
