01 - Control, Door And Drawer Parts

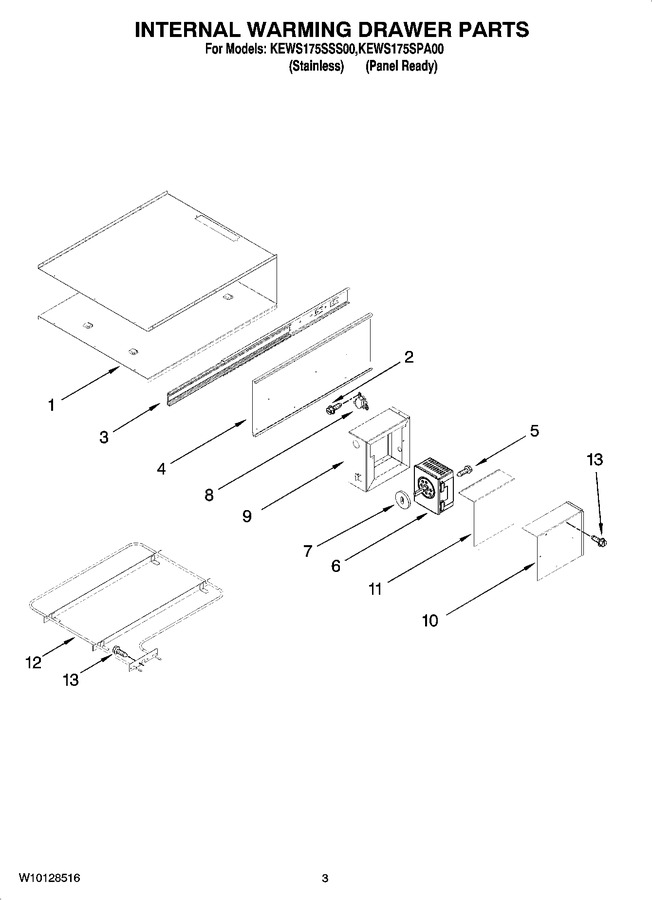

02 - Internal Warming Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762304 | Wrapper |
|
- | |||||
| 2 | 313806 | Screw (1) |
|
- | |||||
| 3 | WPW10188461 | Slide Assembly (Replaces: 9762346) |
|
Immediately | $ 121.53 | ||||
| 4 | 9762307 | Wall (right) |
|
$ 78.87 | |||||
| 4 | 9762308 | Wall (left) |
|
- | |||||
| 5 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 6 | W11708324 | Control (Replaces: W10121337) |
|
$ 165.42 | |||||
| 7 | W10117362 | Gasket, Control (Replaces: 9763119) |
|
- | |||||
| 8 | 9763126 | Thermal Fuse |
|
$ 85.04 | |||||
| 9 | 9763122 | Enclosure, Electric |
|
- | |||||
| 10 | W10182072 | Cover, Enclosure (Replaces: 9763121) |
|
$ 54.23 | |||||
| 11 | 9763120 | Gasket, Enclosure |
|
- | |||||
| 12 | 9762343 | Element, Heating |
|
- | |||||
| 13 | 4452601 | Strain Relief |
|
- | |||||
| 13 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 13 | W10129043 | Harness, Wire (main) (Replaces: W10080110) |
|
$ 293.02 | |||||
| 13 | 8537055 | Stainless Cleaner |
|
- | |||||
| 13 | 4450800 | Screw, Ground (power Cord) |
|
$ 12.12 | |||||
| 13 | W10131847 | Sensor, Sealed (Replaces: 9762347) |
|
$ 229.51 | |||||
| 13 | W10080120 | Power Cord |
|
- | |||||
| 8212670 | Front Panel Assembly, Includes Handle & Badge (white) |
|
- | ||||||
| 8212669 | Front Panel Assembly, Includes Handle & Badge (black) |
|
- |
