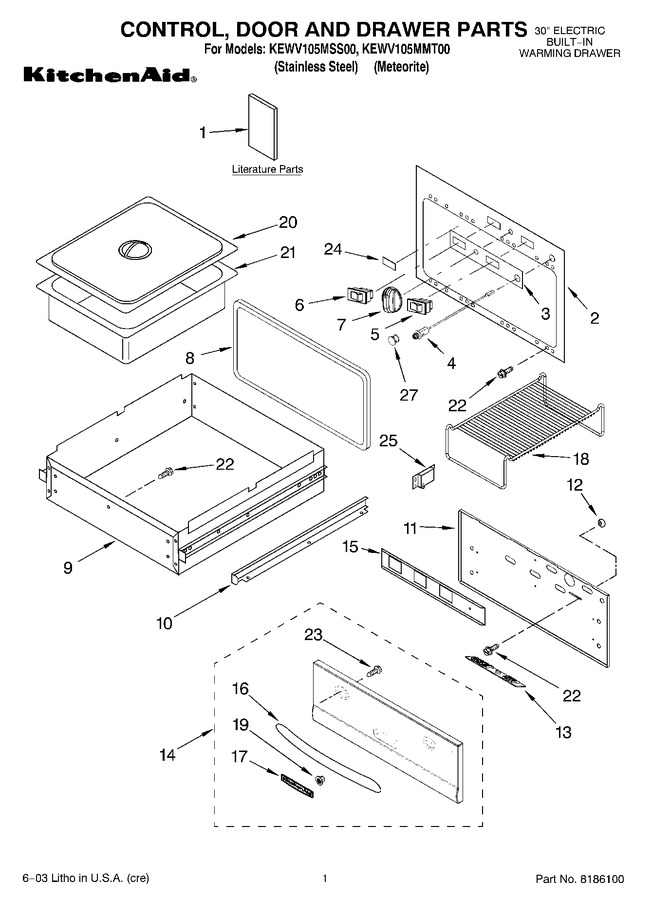

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300562		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8300560		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8300561		Literature Parts (installation Instructions)		Appelez-nous	-
2	4456459		Panel, Control		Appelez-nous	-
3	4456052		Escutchen, Control Panel		Appelez-nous	-
4	8301929		Light, Indicator		Appelez-nous	-
5	4452841		Switch, Rocker Spst Illuminated				$ 66.50
6	WP4452842		Switch, Rocker Spst   (Replaces: 4452842)				$ 94.01
7	W10854530		Knob, Thermostat   (Replaces: 4455984)				$ 15.71
8	4456464		Gasket, Drawer		Appelez-nous	-
9	4456681		Drawer Assembly		Appelez-nous	-
10	4453106		Adapter		Appelez-nous	-
11	8301372		Liner, Drawer		Appelez-nous	-
12	4452820		Knob, Ball		Appelez-nous	-
13	4452830		Label, Moist/dry		Appelez-nous	-
14	8301690		Door, Front Assy (meteorite)		Appelez-nous	-
14	8301689		Door, Front Assy (stainless Steel)		Appelez-nous	-
15	8301005		Vent, Slide		Appelez-nous	-
16	8301679		Handle, Drawer		Appelez-nous	-
17	8531719		Name Plate		Appelez-nous	-
18	4452821		Rack, Warming		Appelez-nous	-
19	4453107		Palnut		Appelez-nous	-
20	4452853		Cover, Pan (large, (half))		Appelez-nous	-
20	4452854		Cover, Pan (small (1/3))		Appelez-nous	-
21	4452849		Pan, Warming (large (half))		Appelez-nous	-
21	4452850		Pan, Warming (small (1/3))		Appelez-nous	-
22	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400805)				$ 6.80
23	WP3196154		Screw, 8-32 X 9/16   (Replaces: 3196154)				$ 7.60
24	4456038		Insulation		Appelez-nous	-
25	8301471		Catch, Door		Appelez-nous	-
27	4456314		Lens, Light				$ 91.89
