SELECT A DIAGRAM

01 - Top And Console Parts

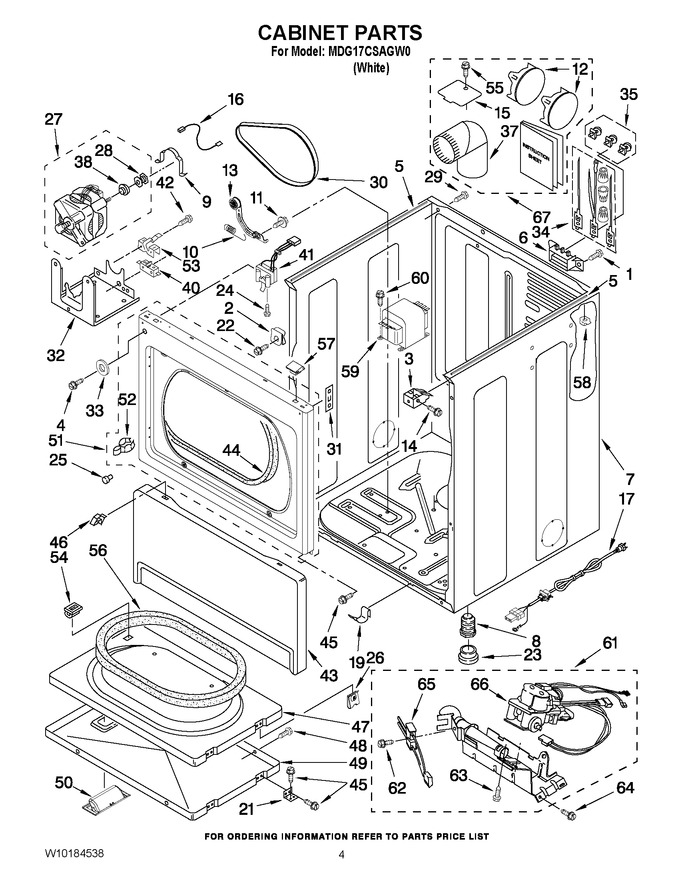

02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10096909 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
2	WPW10131123		Nut, No.8 U Type   (Replaces: W10131123)				$ 8.10
3	3391846		Clip, Front Panel (2)				$ 22.21
4	WP3400077		Screw, 10-16 X 1/2   (Replaces: 3400077)				$ 7.29
5	WP8318396A		Foam-seal   (Replaces: 8318396)				$ 39.71
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
7	W11417441		Cabinet   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	W10080670		Screw		Appelez-nous	-
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 85.28
13	W10837240		Idler Assembly   (Replaces: W10118754)			Immediately	$ 35.78
14	W10223793		Screw, 10-16 X 1		Appelez-nous	-
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
16	3394081		Wire, Belt Switch				$ 37.57
17	W10207854		Cord, Power		Appelez-nous	-
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 85.48
22	WPW10131119		Screw, 8-18 X 5/16   (Replaces: W10131119)				$ 7.30
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 8.21
24	W10080540		Screw, 6-20 X 7/8		Appelez-nous	-
25	693152		Bumper				$ 11.51
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10416573		Motor Assembly (50 Hz.)   (Replaces: 3404470)				$ 250.80
28	3402548		Pulley		Appelez-nous	-
29	W10850756		Screw, 10-32 X 1/2   (Replaces: 8533974)				$ 8.20
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.66
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W10223794		Washer		Appelez-nous	-
34	279318		Terminal, Brass & Tinned (3) (includes Ill. 35)			Immediately	$ 106.04
35	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
37	279731		4`` - 90 Elbow		Appelez-nous	-
38	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
40	WP8318457		Switch-belt   (Replaces: 8318457)				$ 44.19
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 62.63
42	W10118188		Screw, 6-20 X 1.00		Appelez-nous	-
43	WP3406797		Panel, Toe   (Replaces: 697215)				$ 250.25
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	W10080310		Screw, 8-18 X 1/2		Appelez-nous	-
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: 3392563)				$ 301.37
48	W10080300		Screw, 8-18 X 3/8		Appelez-nous	-
49	W11663440		Door, Front   (Replaces: 3387872)				$ 272.34
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 79.54
51	3393081		Front Panel		Appelez-nous	-
52	W10080240		Strike, Door		Appelez-nous	-
53	W10854043		Lever-switch   (Replaces: W10083220)				$ 30.45
54	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
57	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 8.09
58	WP90406		Cage Nut   (Replaces: 90406)				$ 9.09
59	W10851673		Transformer   (Replaces: 3977633)				$ 417.47
60	W11676450		Screw, 10-24 X 3/8   (Replaces: W10080740)				$ 14.76
61	W10096909		Burner Assembly 50 Hz. (refer To Page 8 & 9 For Further Breakdown)		Appelez-nous	-
62	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.88
63	WP693995		Screw, 8-18 X 3/8   (Replaces: W10080630)			Immediately	$ 7.55
64	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
65	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
66	WP8281918		Valve, Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 242.35
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 85.28
NI	W10628146		10a Cord Adapters (european)   (Replaces: W10223809)				$ 124.89
NI	W10628146		10a Cord Adapters (austrailian)   (Replaces: W10223804)				$ 124.89
NI	W10153836		10a Cord Lock		Appelez-nous	-
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10223807		10a Cord Adapters (british)		Appelez-nous	-
