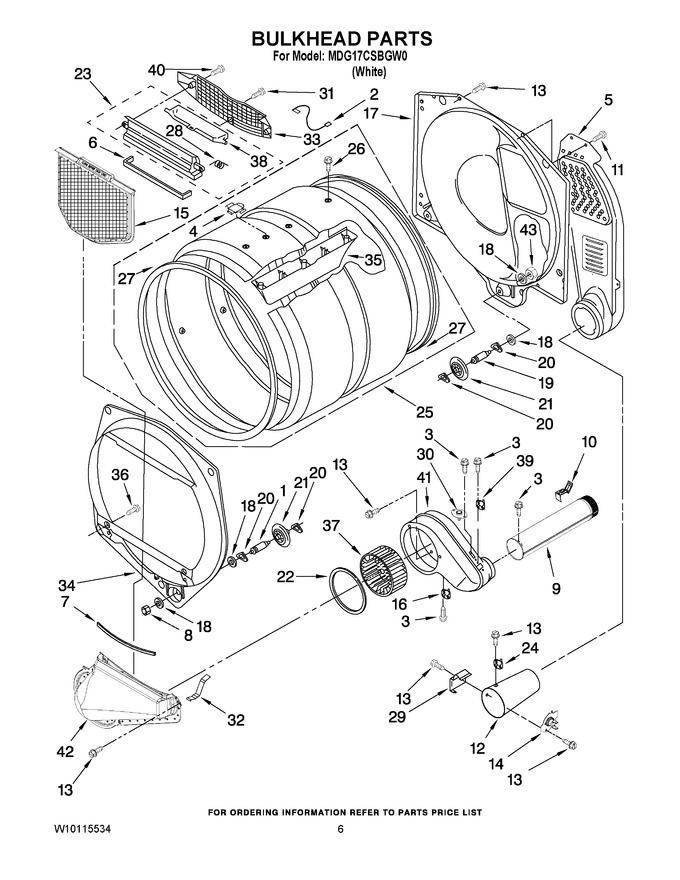

03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 86.59 | |||||
| 3 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 4 | 8066086 | Drum Hole Plug |
|
$ 11.29 | |||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Foam-seal (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut 3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 12.77 | |||||
| 9 | W10121167 | Exhaust Pipe |
|
- | |||||
| 10 | W11684573 | Clip (Replaces: 8572105) |
|
$ 8.17 | |||||
| 11 | WP489464 | Screw, 8-18 X 3/8 (Replaces: W10080700) |
|
Immediately | $ 8.38 | ||||
| 12 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 13 | W10080280 | Screw, 8-18 X 1/2 |
|
- | |||||
| 14 | WPW10181549 | Thermal-cutoff (Replaces: W10181549) |
|
$ 112.68 | |||||
| 15 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 82.95 | |||||
| 16 | W10206196 | Thermostat 155º F Electronic |
|
- | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP697770 | Foam-seal (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181927) |
|
$ 44.99 | |||||
| 24 | W10853395 | Thermostat 255º F High Limit (Replaces: W10206703) |
|
- | |||||
| 25 | W10545923 | Drum Complete (Replaces: 8528998) |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw, 11-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP3394986 | Spring, Lint Screen (Replaces: 3394986) |
|
$ 93.47 | |||||
| 29 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 30 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 32 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 33 | W11086603 | Grill, Outlet (Replaces: W10181926) |
|
Immediately | $ 36.90 | ||||
| 34 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 35 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 36 | W10080590 | Screw, 10-16 X 1/2 |
|
- | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 163.81 | ||||
| 38 | W10181925 | Door, Lint Screen |
|
$ 18.96 | |||||
| 39 | WPW10194158 | Thermostat 140° F Cycling (Replaces: W10194158) |
|
$ 83.20 | |||||
| 40 | W10080640 | Screw, 10-16 X 3/4 |
|
- | |||||
| 41 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 106.79 | |||||
| 42 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 43 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 10.01 |
