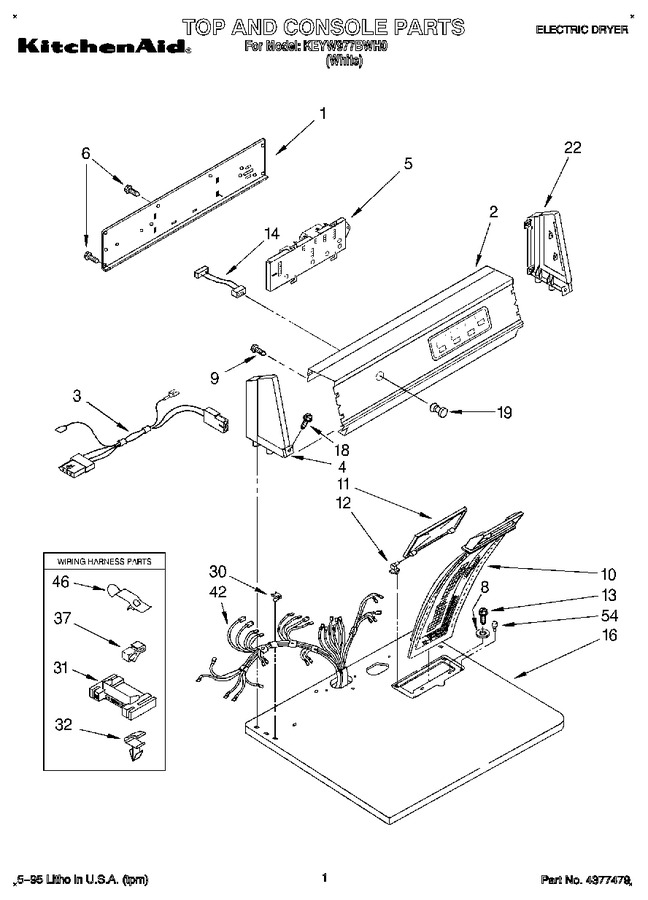

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3399179 | Panel, Rear Console |
|
- | |||||
| 2 | 3404366 | Control Panel & Bracket Assembly |
|
- | |||||
| 3 | 3401677 | Wire, Jumper (lint Light) |
|
- | |||||
| 4 | 3360570 | End Cap (l.h.) |
|
- | |||||
| 5 | 3398015 | Electronic Control Board |
|
- | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 8 | 237446 | Washer |
|
- | |||||
| 9 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 41.46 | ||||
| 11 | 691200 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 691194) |
|
$ 7.30 | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 691193) |
|
$ 7.30 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3350417 | Lamp, Indicator |
|
- | |||||
| 16 | 3399162 | Top (white) |
|
- | |||||
| 18 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 8.36 | |||||
| 19 | 3350383 | Lens, Light |
|
- | |||||
| 22 | 3360567 | Cap, End (r.h.) |
|
- | |||||
| 30 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.98 | |||||
| 31 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 32 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 37 | 689180 | Clip |
|
- | |||||
| 42 | 3401742 | Harness, Electric |
|
- | |||||
| 46 | 357144 | Clip, Harness |
|
- | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| LIT3389704 | Instructions, Installation |
|
- | ||||||
| LIT3387320 | Guide, Dryer |
|
- | ||||||
| LIT3392994 | Guide, Use & Care |
|
- | ||||||
| LIT3387424 | Tech Sheet |
|
- | ||||||
| LIT3403304 | Label, Wiring Diagram |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
