SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

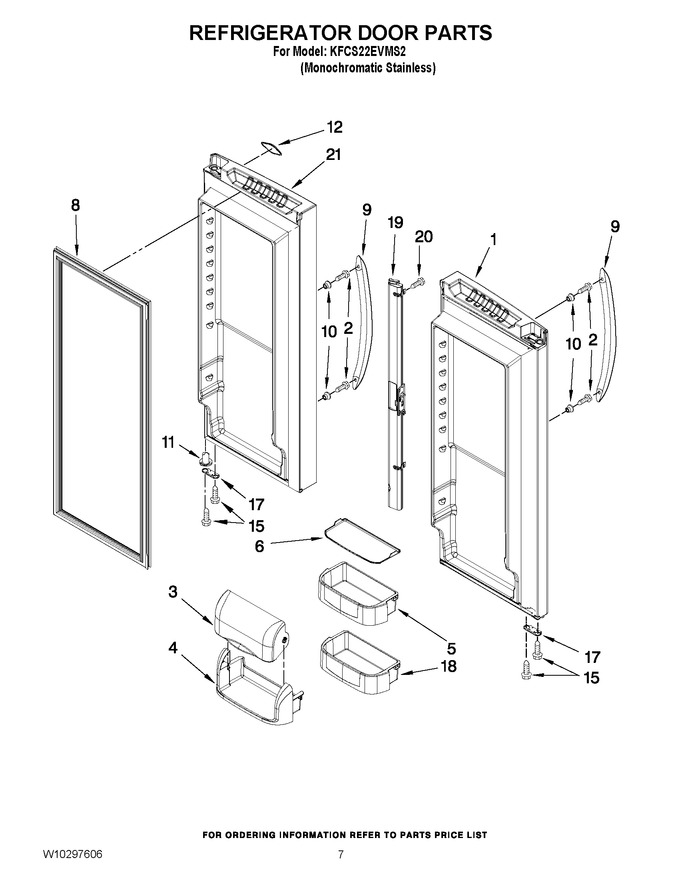

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13094719SQ		Door, Refrigerator (stainless, Lh)		Appelez-nous	-
2	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 7.69
3	WP12744905		Door, Dairy   (Replaces: 12744905)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10451453		Bucket, Medium (3)   (Replaces: W10184033)				$ 81.32
6	W11510593		Gripper, Bucket (medium)   (Replaces: W10184031)			Immediately	$ 15.69
6	W11510594		Gripper, Bucket (gallon)   (Replaces: W10184032)				$ 18.01
8	W10830046		Gasket, Door (apollo Grey)   (Replaces: W10163997)			Immediately	$ 240.04
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10119644)				$ 219.03
10	12691403		Mount, Handle		Appelez-nous	-
11	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
12	W10046610		Nameplate (grey)				$ 33.40
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
17	WPW10120097		Stop, Door (apollo Grey)   (Replaces: W10120097)				$ 7.92
18	WPW10451454		Bucket, Gallon (2)   (Replaces: W10184034)				$ 84.49
19	W11177238		Mullion, Door (apollo Grey)   (Replaces: 12732508AP)			Immediately	$ 198.75
20	W11311945		Screw   (Replaces: 12990204)				$ 13.25
21	13094720SQ		Door, Right (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
