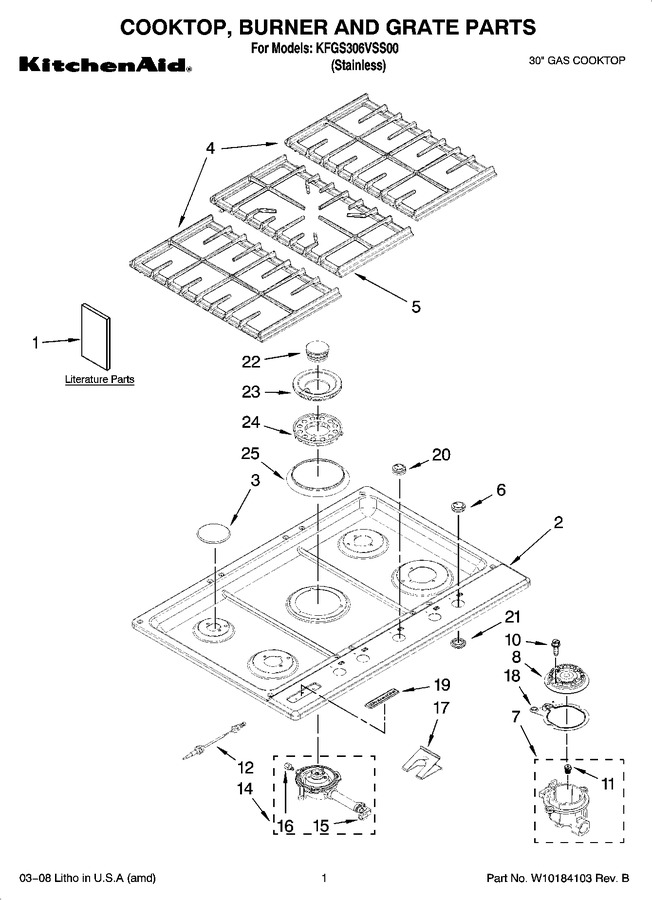

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286867 | Installation Instructions |
|
- | |||||
| 1 | 8304571 | Undercounter Installation |
|
- | |||||
| 1 | 8286868 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 8287002 | Lp Conversion Instructions |
|
- | |||||
| 2 | W10163405 | Cooktop |
|
$ 199.00 | |||||
| 3 | WP8286818 | Cap, Burner (rf) (Replaces: 8286818) |
|
$ 106.02 | |||||
| 3 | WP8286817 | Cap, Burner (rr, Lf) (Replaces: 8286817) |
|
$ 105.92 | |||||
| 3 | WP8286816 | Cap, Burner (lr) (Replaces: 8286816) |
|
$ 99.67 | |||||
| 4 | 8286659 | Grate, Burner (left) |
|
$ 91.14 | |||||
| 4 | 8286661 | Grate, Burner (right) |
|
$ 89.11 | |||||
| 5 | 8287048 | Grate, Center |
|
$ 88.87 | |||||
| 6 | WPW10132192 | Knob, Control (4) (Replaces: W10132174) |
|
Immediately | $ 56.51 | ||||
| 7 | W10140570 | Holder, Orifice (rf) |
|
$ 72.91 | |||||
| 7 | W10140569 | Holder, Orifice (rr) |
|
$ 72.59 | |||||
| 7 | 8286821 | Holder, Orifice (lf) |
|
$ 72.59 | |||||
| 7 | 8286820 | Holder, Orifice (lr) |
|
$ 72.43 | |||||
| 8 | WP8286814 | Head, Burner (rr, Lf) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| 8 | WP8286813 | Head, Burner (lr) (Replaces: 8286813) |
|
$ 90.22 | |||||
| 8 | WP8286815 | Head, Burner (rf) (Replaces: 8286815) |
|
Immediately | $ 112.13 | ||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.51 | ||||
| 11 | W10791076 | Orifice (lf) (Replaces: W10151347) |
|
$ 90.15 | |||||
| 11 | W10791072 | Orifice (rf) (Replaces: W10151349) |
|
$ 90.15 | |||||
| 11 | W10151350 | Orifice (rr) |
|
$ 76.59 | |||||
| 11 | W10791614 | Orifice (lr) (Replaces: W10151348) |
|
$ 90.15 | |||||
| 12 | 8286723 | Electrode Wiring (lr) |
|
$ 73.16 | |||||
| 12 | WPW10560001 | Electrode Wiring (lf) (Replaces: 8286722) |
|
$ 75.10 | |||||
| 12 | 8286724 | Electrode Wiring (rf) |
|
$ 30.12 | |||||
| 12 | W10854967 | Electrode Wiring (rr) (Replaces: 8286725) |
|
Immediately | $ 43.54 | ||||
| 14 | 8286819 | Assembly, Burner Base |
|
$ 124.66 | |||||
| 15 | W10137306 | Orifice, External |
|
- | |||||
| 16 | WPW10137303 | Orifice, Simmer (Replaces: W10137303) |
|
$ 80.88 | |||||
| 17 | 8286863 | Clip, Electrode |
|
$ 69.23 | |||||
| 18 | 8286930 | Gasket, Orifice (lr) |
|
$ 86.16 | |||||
| 18 | 8286932 | Gasket, Orifice (rf) |
|
$ 82.11 | |||||
| 18 | 8286931 | Gasket, Orifice (rr, Lf) |
|
$ 53.77 | |||||
| 19 | 8304603SS | Badge |
|
$ 51.11 | |||||
| 20 | W10132191 | Knob, Special Burner (1) (Replaces: W10132175) |
|
$ 56.09 | |||||
| 21 | 8287304 | Knob, Grommet (5) |
|
- | |||||
| 22 | WPW10163407 | Spreader, Inner (Replaces: W10163407) |
|
$ 146.89 | |||||
| 23 | WPW10153033 | Spreader, Outer (Replaces: W10153033) |
|
$ 177.24 | |||||
| 24 | WP8287072 | Cross Ring, Burner (Replaces: 8287072) |
|
$ 187.44 | |||||
| 25 | 8287075 | Beauty Ring, Burner |
|
$ 30.60 |
