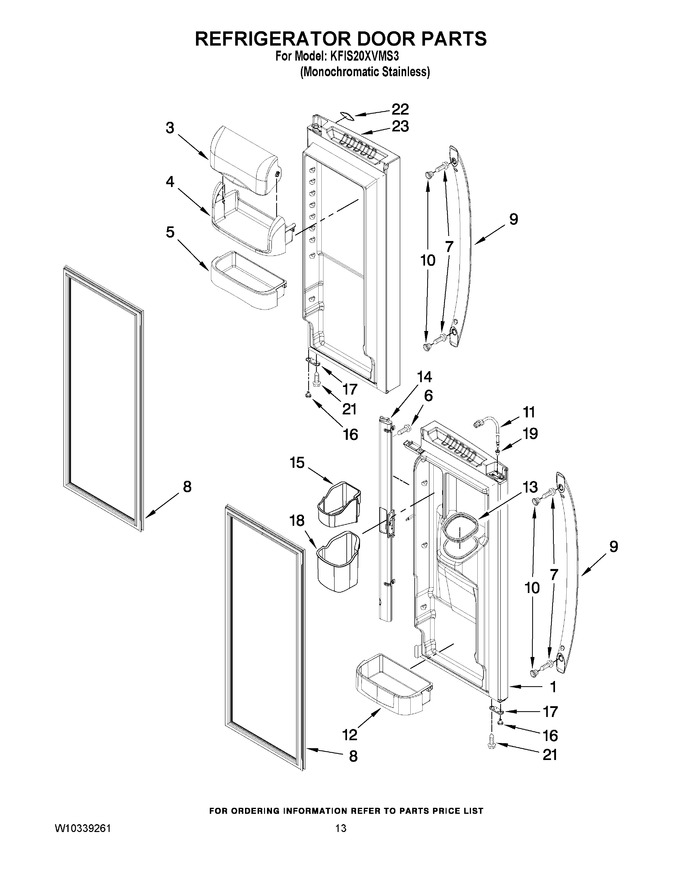

07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107817S		Door, Left (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10451453		Bin, Shelf (medium) (includes Gripper No.w10184031)   (Replaces: W10184033)				$ 81.32
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
7	W10290759		Screw, Handle				$ 5.83
8	W10830055		Gasket, Door (apollo Grey)   (Replaces: W10163991)			Immediately	$ 255.29
9	WPW10314517K		Handle, Door (stainless)   (Replaces: W10314517)				$ 219.03
10	WP67006113		Mount-handle   (Replaces: 13001201)			Immediately	$ 11.30
11	12962106		Waterline, Door				$ 119.78
12	WPW10451454		Bin, Shelf (gallon) (includes Gripper No.w10184032)   (Replaces: W10184034)				$ 84.49
13	WPW10287601		Seal, Ice Chute   (Replaces: 12665101SP)			Immediately	$ 29.48
14	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12722813AP)				$ 306.80
15	W10187453		Bucket, Dispenser (upper)   (Replaces: 12977401)				$ 65.77
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 13.91
18	12977501		Bucket, Dispenser (lower)		Appelez-nous	-
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 7.71
22	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 52.48
23	13107814SQ		Door, Right (stainless)		Appelez-nous	-
