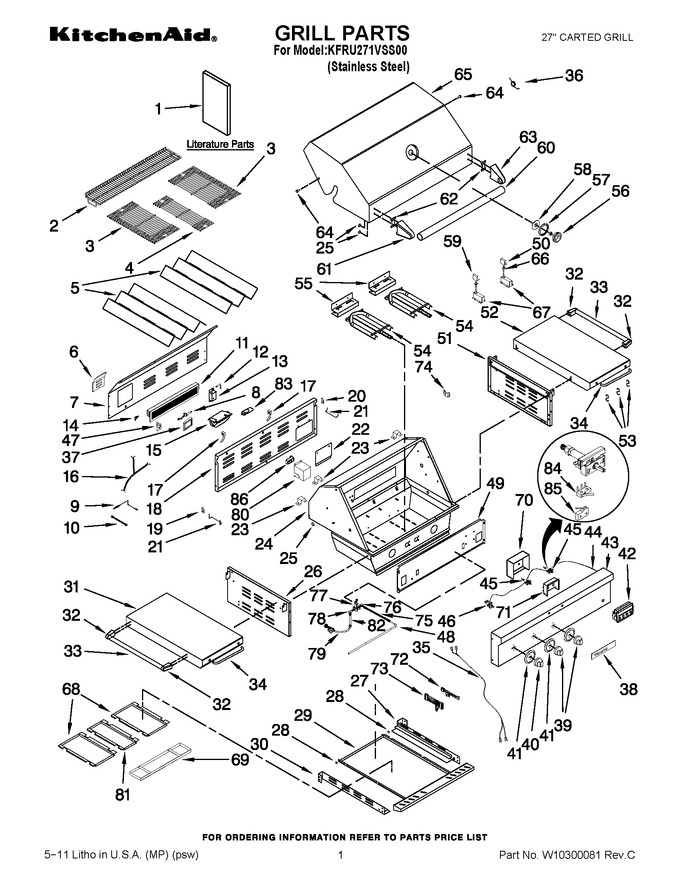

01 - Grill Parts
02 - Base Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175731 | Use & Care Guide |
|
- | |||||
| 2 | W10128611 | Rack, Warming |
|
- | |||||
| 3 | W10247081 | Grate, Large |
|
- | |||||
| 4 | W10244176 | Grate, Small |
|
- | |||||
| 5 | W10244180 | Plate, Sear |
|
- | |||||
| 6 | W10303699 | Cover, Rear |
|
- | |||||
| 7 | W10128620 | Panel, Rear |
|
- | |||||
| 8 | W10298673 | Igniter, Hot Rear Burner |
|
- | |||||
| 9 | W10244204 | Thermocouple, Rear,burner |
|
- | |||||
| 10 | W10128623 | Flex Tube, Rear Burner |
|
- | |||||
| 11 | W10128624 | Burner, Rear |
|
$ 216.60 | |||||
| 12 | W10244186 | Bracket, Rear Thermocouple |
|
- | |||||
| 13 | W10244184 | Cover, Rear Thermocouple |
|
- | |||||
| 14 | W10246966 | Orifice, Rear Burner |
|
- | |||||
| 15 | W10140242 | Light, Grill |
|
- | |||||
| 16 | W10128630 | Harness, Wire Lights |
|
- | |||||
| 17 | W10128631 | Socket, Light |
|
- | |||||
| 18 | W10303710 | Panel, Access |
|
- | |||||
| 19 | W10247108 | Bracket, Panel (left) |
|
- | |||||
| 20 | W10247107 | Bracket, Panel (right) |
|
- | |||||
| 21 | W10247109 | Bracket, Warming Rack |
|
- | |||||
| 22 | W10128637 | Cover, Access Panel |
|
- | |||||
| 23 | W10244338 | Clip, Wire |
|
- | |||||
| 24 | N/P | Not Serviced |
|
- | |||||
| 25 | W10247110 | Hole, Plug |
|
- | |||||
| 26 | W10128642 | Panel, Side Left |
|
- | |||||
| 27 | W10246970 | Bracket, Grease Tray (right) |
|
- | |||||
| 28 | W10128655 | Roller, Drip Tray |
|
$ 63.78 | |||||
| 29 | W10247124 | Drip Tray Assy (includes Rollers) |
|
- | |||||
| 30 | W10246971 | Bracket, Grease Tray (left) |
|
- | |||||
| 31 | W10128658 | Shelf, Side (lf) |
|
- | |||||
| 32 | W10128659 | Bracket, Handle |
|
- | |||||
| 33 | W10128660 | Handle, Shelf |
|
- | |||||
| 34 | W10128662 | Bar, Tool |
|
- | |||||
| 35 | W10303806 | Harness, Wire Light |
|
- | |||||
| 36 | W10247041 | Spring, Hood |
|
- | |||||
| 37 | W10134808 | Housing, Lamp |
|
- | |||||
| 38 | W10285657 | Nameplate |
|
- | |||||
| 39 | W10285660 | Knob, Main Burner |
|
- | |||||
| 40 | W10128756 | Knob, Rear Burner |
|
- | |||||
| 41 | W10128759 | Bezel, Knob |
|
- | |||||
| 42 | WPW10244945 | Display, Ui (Replaces: W10244945) |
|
$ 346.19 | |||||
| 43 | W10303790 | Panel, Control |
|
- | |||||
| 44 | W10303802 | Harness, Wire Control |
|
- | |||||
| 45 | WPW10244954 | Valve, Main Brnr (Replaces: W10244954) |
|
$ 311.24 | |||||
| 46 | WPW10244951 | Valve, Rear Brnr (Replaces: W10244951) |
|
$ 299.91 | |||||
| 47 | W10244185 | Bracket, Igniter Rear Burner |
|
- | |||||
| 48 | W10244195 | Manifold |
|
- | |||||
| 49 | W10246972 | Baffle, Front |
|
- | |||||
| 50 | W10244196 | Collector, Gas Right |
|
- | |||||
| 51 | W10246969 | Side Panel, Right |
|
- | |||||
| 52 | W10128773 | Shelf, Side (rt) |
|
- | |||||
| 53 | W10128774 | Hook |
|
- | |||||
| 54 | W10128775 | Burner, Main |
|
$ 288.82 | |||||
| 55 | W10244202 | Bracket,main Brnr |
|
$ 27.50 | |||||
| 56 | W10128777 | Thermometer |
|
$ 62.56 | |||||
| 57 | W10128779 | Bezel, Thermometer |
|
- | |||||
| 58 | W10140257 | Washer, Flat |
|
- | |||||
| 59 | W10244198 | Collector, Gas Left |
|
- | |||||
| 60 | W10128783 | Handle, Hood |
|
- | |||||
| 61 | W10128785 | Endcap, Handle (left) |
|
- | |||||
| 62 | W10128786 | Spacer, Handle |
|
- | |||||
| 63 | W10128787 | Endcap, Handle (right) |
|
- | |||||
| 64 | W10128788 | Hinge, Lid |
|
$ 12.14 | |||||
| 65 | W10247080 | Hood |
|
- | |||||
| 66 | W10247024 | Igniter, Hot Surface Main |
|
- | |||||
| 67 | W10244197 | Bracket, Igniter Hot Surface |
|
- | |||||
| 68 | W10244963 | Tray, Grease |
|
- | |||||
| 69 | W10247125 | Tray, Grease |
|
- | |||||
| 70 | W10244956 | Box, Ui Inner |
|
- | |||||
| 71 | W10244955 | Box, Display |
|
- | |||||
| 72 | W10303799 | Wire, Valve |
|
- | |||||
| 73 | W10246979 | Wire, Ui Display |
|
- | |||||
| 74 | W10247106 | Bracket, Spit |
|
- | |||||
| 75 | W10244195 | Flex Tube, Manifold |
|
- | |||||
| 76 | W10244337 | Flange, Valve |
|
- | |||||
| 77 | WPW10247149 | Valve, Safety (Replaces: W10247149) |
|
$ 226.49 | |||||
| 78 | W10244333 | Connector, Brass |
|
- | |||||
| 79 | W10247196 | Regulator, Lp |
|
- | |||||
| 80 | W10244336 | Box, Insulator |
|
- | |||||
| 81 | W10301592 | Tray, Small |
|
- | |||||
| 82 | W10128750 | Commutator, Manifold |
|
- | |||||
| 83 | 8204670 | Bulb, Light |
|
Immediately | $ 27.23 | ||||
| 84 | W10246888 | Switch, Ignitor |
|
- | |||||
| 85 | W10303682 | Switch, Valve Sensor |
|
- | |||||
| 86 | N/P | Not Serviced Separately - (w10287226 Load Cell Kit & Processor) |
|
- |
