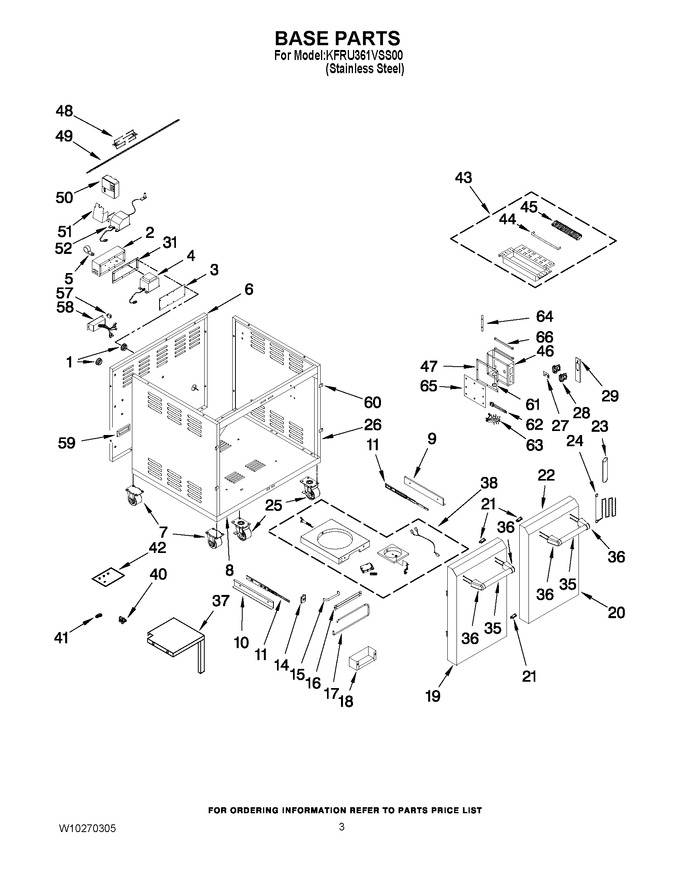

01 - Grill Parts


02 - Base Parts


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128666		Ring, Rubber		Appelez-nous	-
2	W10246981		Box,transformer		Appelez-nous	-
3	W10246632		Cover,transformr Box		Appelez-nous	-
4	W10134823		Transformer		Appelez-nous	-
5	7111P002-60		Clamp, Wire   (Replaces: W10128670)		Appelez-nous	-
6	W10136421		Panel, Rear		Appelez-nous	-
7	W10128672		Caster		Appelez-nous	-
8	W10136424		Panel, Bottom		Appelez-nous	-
9	W10128674		Bracket, Tank Tray (right)		Appelez-nous	-
10	W10128675		Bracket, Tank Tray (left)		Appelez-nous	-
11	W10247141		Slide, Tank Tray		Appelez-nous	-
14	W10128679		Lock, Tank Tray		Appelez-nous	-
15	W10247140		Handle,tank Tray		Appelez-nous	-
16	W10246761		Bracket, Towel Rack		Appelez-nous	-
17	W10128686		Rack, Towel		Appelez-nous	-
18	W10246986		Tray, Condiment		Appelez-nous	-
19	W10246984		Door, Left Inner Panel		Appelez-nous	-
20	W10246987		Door, Outer Panel		Appelez-nous	-
21	W10128697		Magnet, Door		Appelez-nous	-
22	W10246985		Door, Right Inner Panel		Appelez-nous	-
23	W10285881		Bag, Lighting Rod		Appelez-nous	-
24	W10285882		Rod, Lighting		Appelez-nous	-
25	W10128705		Caster, W/brake		Appelez-nous	-
26	W10136432		Panel, Side Assy		Appelez-nous	-
27	W10246882		Cover, Stop Box		Appelez-nous	-
28	W10246880		Box, Battery		Appelez-nous	-
29	W10246879		Case, Battery Box		Appelez-nous	-
31	W10246982		Washer, Box		Appelez-nous	-
35	W10128661		Handle, Door		Appelez-nous	-
36	W10128659		Bracket, Handle		Appelez-nous	-
37	W10136427		Rack, Storage		Appelez-nous	-
38	WPW10287226		Load Cell Kit And Processor   (Replaces: W10287226)				$ 851.06
40	WPW10132702		Regulator, Ng   (Replaces: W10246989)				$ 322.11
41	W10246809		Connector, Ng		Appelez-nous	-
42	W10246988		Kit, Orifice Ng		Appelez-nous	-
43	W10244190		Box, Smoker		Appelez-nous	-
44	W10134791		Handle, Smoker		Appelez-nous	-
45	W10134790		Grate, Smoker		Appelez-nous	-
46	W10246883		Insulator, Box		Appelez-nous	-
47	W10246885		Washer, Box		Appelez-nous	-
48	W10134981		Fork, Spit		Appelez-nous	-
49	W10247180		Rod, Spit		Appelez-nous	-
50	W10134985		Motor, Rotisserie		Appelez-nous	-
51	W10134986		Bracket, Motor		Appelez-nous	-
52	WPW10247115		Transformer, Rotisserie   (Replaces: W10134987)				$ 188.98
57	W10246628		Breaker, Circuit		Appelez-nous	-
58	W10246629		Outlet, Male		Appelez-nous	-
59	W10246627		Washer, Outlet		Appelez-nous	-
60	W10246759		Hinge, Door		Appelez-nous	-
61	W10246877		Ring, Rubber		Appelez-nous	-
62	W10246874		Wire, Load Cell		Appelez-nous	-
63	W10246873		Wire, Dc Supply		Appelez-nous	-
64	W10244192		Washer, Shelf		Appelez-nous	-
65	W10246878		Cover, Box		Appelez-nous	-
66	W10246886		Bracket, Box		Appelez-nous	-
