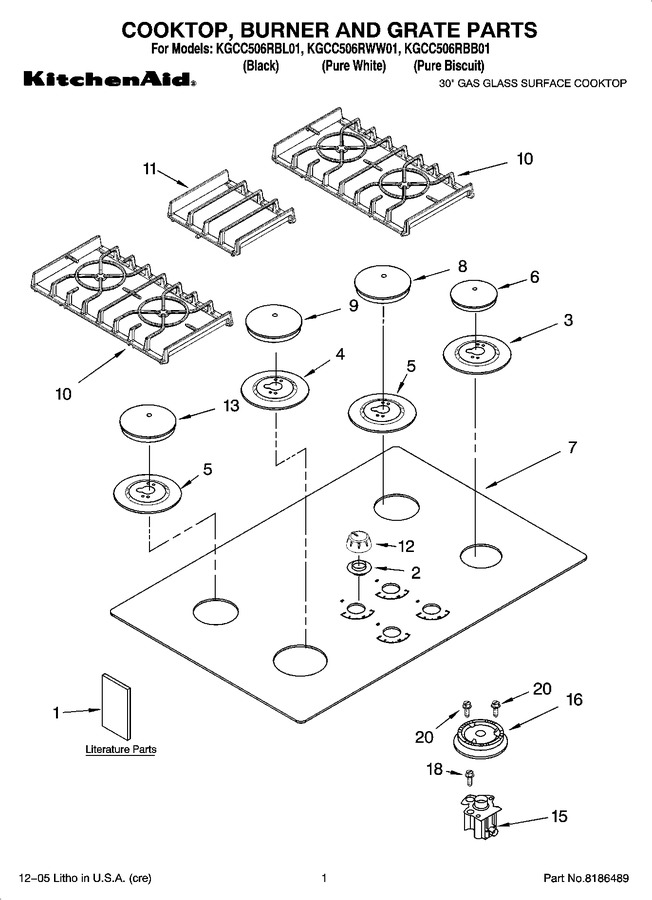

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192098		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	8286610		Use & Care Guide		Appelez-nous	-
1	8286620		Conversion Instructions		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.77
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.96
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	9753601CG		Bezel, Cooktop (rf) (cumberland Grey)				$ 129.08
3	9753601BL		Bezel, Cooktop (rf) (black)				$ 28.59
3	9753601MS		Bezel, Cooktop (rf) (moleskin)		Appelez-nous	-
4	8285779CG		Bezel, Cooktop (lf) (cumberland Grey)				$ 117.37
4	8285779BL		Bezel, Cooktop (lf) (black)				$ 117.15
4	8285779MS		Bezel, Cooktop (lf) (moleskin)		Appelez-nous	-
5	9753602BL		Bezel, Cooktop (lr, Rr) (black)				$ 62.64
5	9753602MS		Bezel, Cooktop (lr, Rr) (moleskin)		Appelez-nous	-
5	9753602CG		Bezel, Cooktop (lr, Rr) (cumberland Grey)				$ 62.89
6	WP8286153CG		Cap, (rf) (cumberland Grey)   (Replaces: 8286153CG)				$ 78.80
6	8286153MS		Cap, (rf) (moleskin)		Appelez-nous	-
6	WP8286153CB		Cap, (rf) (coal Matte Black)   (Replaces: 8286153CB)				$ 65.06
7	8286171		Cooktop, Glass (inc. Foam Seal) (white)		Appelez-nous	-
7	W10564558		Cooktop, Glass (inc. Foam Seal) (black)   (Replaces: 8286169)				$ 805.44
7	8186526		Cooktop, Glass (inc. Foam Seal) (biscuit)   (Replaces: 8286170)		Appelez-nous	-
8	8286155MS		Cap, (rr) (lr) (moleskin)		Appelez-nous	-
8	WP8286155CG		Cap, (rr) (lr) (cumberland Grey)   (Replaces: 8286155CG)				$ 95.97
8	WP8286155CB		Cap, (rr) (lr) (coal Matte Black)   (Replaces: 8286155CB)				$ 109.94
9	WP8286156CB		Cap, (lf) (coal Matte Black)   (Replaces: 8286156CB)				$ 112.29
9	8286156CG		Cap, (lf) (cumberland Grey)				$ 120.65
9	8286156MS		Cap, (lf) (moleskin)		Appelez-nous	-
10	W11502175		Grate, Burner (coal Matte Black)   (Replaces: 8285879CB)				$ 228.92
10	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 250.97
10	8285879MS		Grate, Burner (moleskin)		Appelez-nous	-
11	W11242858		Grate, Center (cumberland Grey)   (Replaces: 8285880CG)				$ 275.81
11	8285880MS		Grate, Center (moleskin)		Appelez-nous	-
11	W11242862		Grate, Center (coal Matte Black)   (Replaces: 8285880CB)				$ 174.44
12	WP8286094BL		Knob, Control (4) (black)   (Replaces: 8286094BL)			Immediately	$ 26.60
12	8286094WH		Knob, Control (4) (white)				$ 31.22
12	8286094BT		Knob, Control (4) (biscuit)				$ 9.95
13	8286154MS		Cap, (lr) (moleskin)		Appelez-nous	-
13	WP8286154CB		Cap, (lr) (coal Matte Black)   (Replaces: 8286154CB)				$ 81.84
13	WP8286154CG		Cap, (lr) (cumberland Grey)   (Replaces: 8286154CG)				$ 91.32
15	WPW10128448		Holder, Orifice (auxiliary)   (Replaces: 8286179)			Immediately	$ 105.57
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 104.79
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286178)				$ 111.92
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 107.19
16	WPW10406878		Head, Burner (lf)   (Replaces: 8286183)				$ 96.73
16	WPW10406243		Head, Burner (rf)   (Replaces: 8286181)			Immediately	$ 35.17
16	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 83.62
16	WPW10406283		Head, Burner (lr)   (Replaces: 8286184)				$ 70.22
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
20	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 7.70
