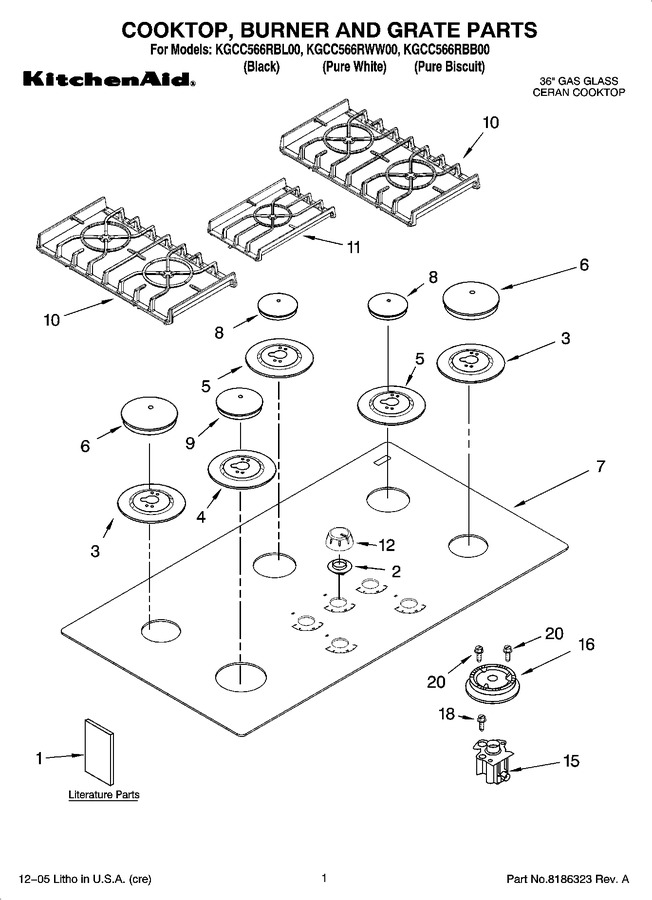

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192099		Wiring Diagram		Appelez-nous	-
1	8286314		Lp Conversion Instructions		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	8286305		Use & Care Guide		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.77
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.96
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	9753602CG		Bezel, Cooktop (rf) (lr) (cumberland Grey)				$ 62.89
3	9753602BL		Bezel, Cooktop (rf) (lr) (black)				$ 62.64
3	9753602MS		Bezel, Cooktop (rf) (lr) (moleskin)		Appelez-nous	-
4	8285779CG		Bezel, Cooktop (lf) (cumberland Grey)				$ 117.37
4	8285779BL		Bezel, Cooktop (lf) (black)				$ 117.15
4	8285779MS		Bezel, Cooktop (lf) (moleskin)		Appelez-nous	-
5	9753601BL		Bezel, Cooktop (rr) (center) (black)				$ 28.59
5	9753601MS		Bezel, Cooktop (rr) (center) (moleskin)		Appelez-nous	-
5	9753601CG		Bezel, Cooktop (rr) (center) (cumberland Grey)				$ 129.08
6	WP8286155CG		Cap, (rf) (lr) (cumberland Grey)   (Replaces: 8286155CG)				$ 95.97
6	8286155MS		Cap, (rf) (lr) (moleskin)		Appelez-nous	-
6	WP8286155CB		Cap, (rf) (lr) (black)   (Replaces: 8286155BL)				$ 109.94
7	8286173		Cooktop Glass (biscuit)		Appelez-nous	-
7	W10661512		Cooktop Glass (white)   (Replaces: 8286174)		Appelez-nous	-
7	W10661511		Cooktop Glass (black)   (Replaces: 8286172)		Appelez-nous	-
8	8286153MS		Cap, (rr) (center) (moleskin)		Appelez-nous	-
8	WP8286153CG		Cap, (rr) (center) (cumberland Grey)   (Replaces: 8286153CG)				$ 78.80
8	WP8286153CB		Cap, (rr) (center) (black)   (Replaces: 8286153BL)				$ 65.06
9	8286156MS		Cap, (lf) (moleskin)		Appelez-nous	-
9	WP8286156CB		Cap, (lf) (black)   (Replaces: 8286156BL)				$ 112.29
9	8286156CG		Cap, (lf) (cumberland Grey)				$ 120.65
10	W11502175		Grate, Burner (black)   (Replaces: 8285879BL)				$ 228.92
10	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 250.97
10	8285879MS		Grate, Burner (moleskin)		Appelez-nous	-
11	8285881CG		Grate, Center (cumberland Grey)		Appelez-nous	-
11	W11242859		Grate, Center (black)   (Replaces: 8285881BL)				$ 232.91
11	8285881MS		Grate, Center (moleskin)		Appelez-nous	-
12	8286094WH		Knob, Control (4) (white)				$ 31.22
12	8286094BT		Knob, Control (4) (biscuit)				$ 9.95
12	WP8286094BL		Knob, Control (4) (black)   (Replaces: 8286094BL)			Immediately	$ 26.60
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286241)				$ 111.92
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 105.57
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 107.19
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 104.79
16	WPW10406797		Head, Burner (rapid)   (Replaces: 8286182)				$ 83.62
16	WPW10406243		Head, Burner (auxi)   (Replaces: 8286181)			Immediately	$ 35.17
16	WPW10406878		Head, Burner (ultra Rapid)   (Replaces: 8286183)				$ 96.73
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
