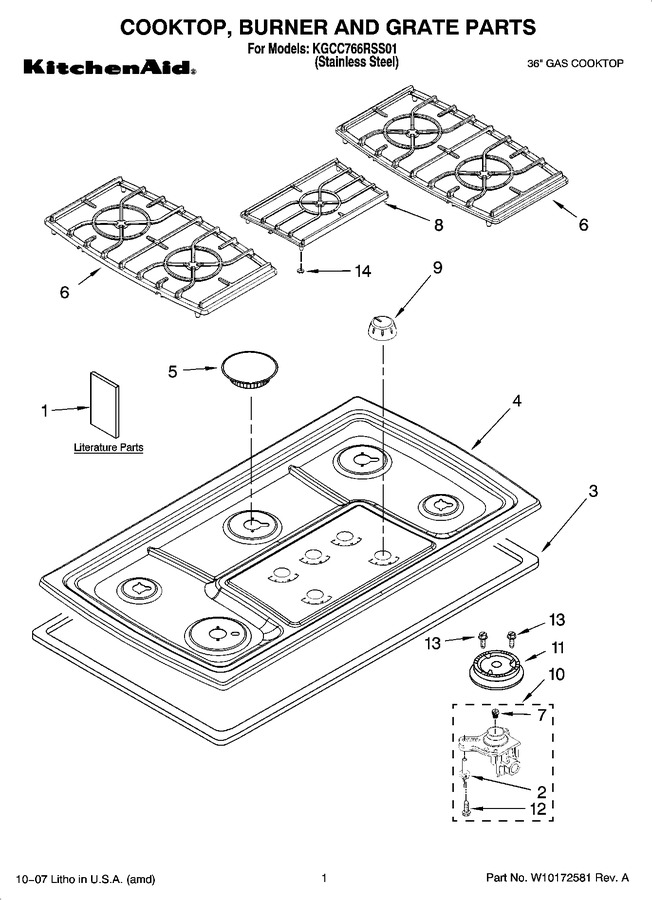

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169072		Use & Care Guide		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
1	W10131955		Installation Instructions		Appelez-nous	-
1	3192099		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
2	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
3	9760279		Seal, Foam				$ 51.94
4	W10169223		Cooktop		Appelez-nous	-
5	WP8286156CB		Cap, Burner (lf)   (Replaces: 8286156CB)				$ 112.29
5	WP8286153CB		Cap, Burner (lr, Rf)   (Replaces: 8286153CB)				$ 65.06
5	WP8286154CB		Cap, Burner (ctr)   (Replaces: 8286154CB)				$ 81.84
5	WP8286155CB		Cap, Burner (rr)   (Replaces: 8286155CB)				$ 109.94
6	8285876CB		Grate, Burner				$ 99.26
7	8286474		Orifice (lf)				$ 85.08
7	8287051		Orifice (rr)		Appelez-nous	-
7	WP3192523		Orifice (ctr)   (Replaces: 3192523)				$ 84.20
7	WP3192529		Orifice (lr & Rf)   (Replaces: 3192529)				$ 90.67
8	8285878CB		Grate, Filler				$ 90.67
9	WP8286094BL		Knob, Control (4)   (Replaces: 8286094BL)			Immediately	$ 26.60
10	WPW10128450		Holder, Orifice (ctr)   (Replaces: W10128450)				$ 111.92
10	8287052		Holder, Orifice (rr)				$ 45.10
10	WPW10128448		Holder, Orifice (lf)   (Replaces: W10128448)			Immediately	$ 105.57
11	WPW10406243		Head, Burner (lr & Rf)   (Replaces: 8286181)			Immediately	$ 35.17
11	WPW10406878		Head, Burner (lf)   (Replaces: 8286183)				$ 96.73
11	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 83.62
11	WPW10406283		Head, Burner (ctr)   (Replaces: 8286184)				$ 70.22
12	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
13	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
14	WP8286452		Grommet, Grate   (Replaces: 8286452)				$ 8.58
