01 - Top And Console Parts
02 - Cabinet Parts

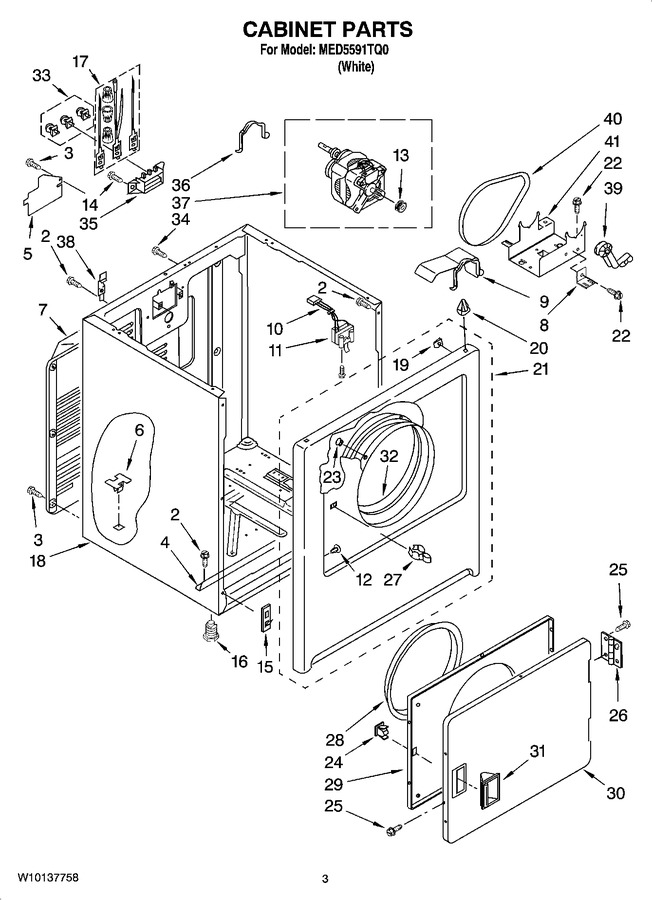

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 6 | 3404283 | Plug-cabinet |
|
- | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | 3401805 | Idler-bracket |
|
- | |||||
| 9 | 3401800 | Shield, Belt Assembly |
|
- | |||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406105) |
|
Immediately | $ 33.21 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 12 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 13 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 11.49 | ||||
| 14 | WP308685 | Screw, 10-16x1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 33) |
|
Immediately | $ 95.44 | ||||
| 18 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 21 | 3403571 | Panel, Front |
|
- | |||||
| 22 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 23 | 279220 | Clip, Felt Pad (3) (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 25 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 26 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 7.45 | ||||
| 27 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 28 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 61.07 | ||||
| 29 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 30 | WP3403361 | Door, Front (Replaces: 3403361) |
|
$ 171.48 | |||||
| 31 | W11109500 | Handle, Door (Replaces: 8565970) |
|
$ 79.01 | |||||
| 32 | 279264 | Seal & Bearing Assembly (Replaces: 8066124) |
|
Immediately | $ 76.91 | ||||
| 33 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 34 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 7.38 | |||||
| 35 | 397659 | Block, Terminal |
|
- | |||||
| 36 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 37 | WPW10396039 | Motor Assembly 60 Hz. (Replaces: 8535934) |
|
$ 228.38 | |||||
| 38 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 7.39 | |||||
| 39 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 16.34 | ||||
| 41 | 3401801 | Base, Motor (Replaces: 3401802) |
|
$ 107.37 |
