01 - Top And Console Parts

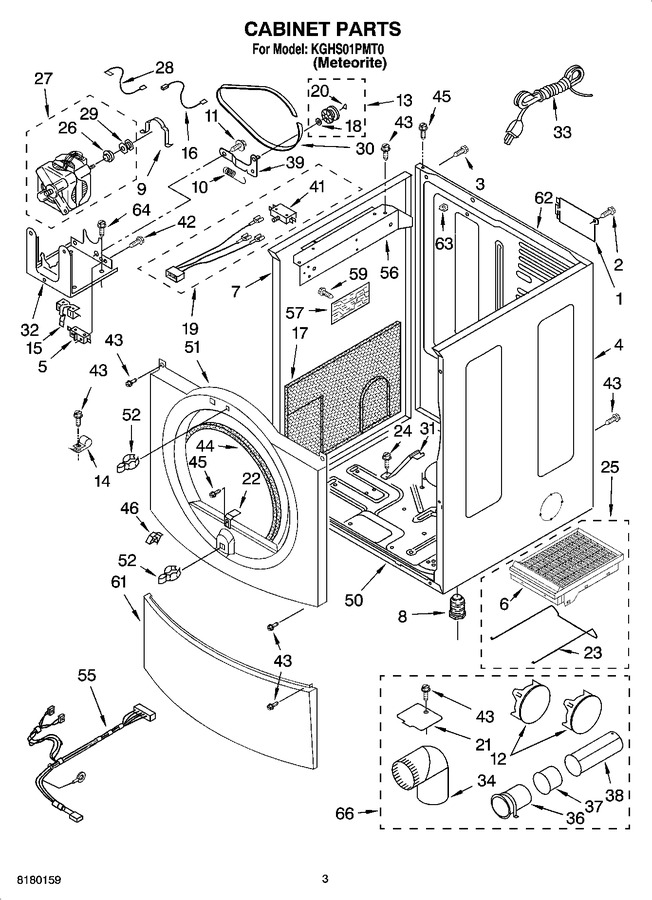

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318276 Burner Assembly
05 - Door Parts
06 - Pedestal Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 697776) |
|
$ 7.38 | |||||
| 4 | 8542720 | Panel, Side (r.h.) |
|
- | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 52.57 | ||||
| 6 | 8212450A | Dry Rack (top) (Replaces: 8521959) |
|
Immediately | $ 79.37 | ||||
| 7 | 8542719 | Panel, Side (l.h.) |
|
- | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 8557570) |
|
$ 68.02 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 31.29 | ||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | 8528076 | Sound Panel |
|
- | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.52 | ||||
| 19 | WP8283288 | Wire, Jumper (includes Illus. 41) (Replaces: 8283288) |
|
Immediately | $ 99.28 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 8.47 | |||||
| 22 | 8529053 | Ramp, Door |
|
$ 51.37 | |||||
| 23 | 8521961 | Dry Rack Support |
|
- | |||||
| 24 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 25 | 8212450A | Dry Rack Assembly (Replaces: 8521957) |
|
Immediately | $ 79.37 | ||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 222.14 | ||||
| 28 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 58.19 | |||||
| 29 | W10837625 | Pulley 60 Hz (Replaces: 3389729) |
|
Immediately | $ 11.49 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 91.71 | |||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 3395532) |
|
$ 86.36 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 3395534) |
|
$ 74.61 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 3395535) |
|
$ 83.92 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 41 | WP8283288 | Switch, Door (Replaces: 8519323) |
|
Immediately | $ 99.28 | ||||
| 42 | WP98129 | Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
$ 7.36 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 46 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 19.95 | |||||
| 50 | 8519207 | Base, Cabinet |
|
- | |||||
| 51 | 8542695 | Front Panel |
|
- | |||||
| 52 | 279570 | Strike, Door(2) (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 55 | 8299929 | Harness, Digital Interface |
|
- | |||||
| 56 | 8519273 | Bracket, Control |
|
- | |||||
| 57 | 3980062 | Control Board |
|
- | |||||
| 59 | 3400826 | Screw, 8-18 X 3/4 |
|
- | |||||
| 61 | 8539265 | Toe, Panel |
|
- | |||||
| 62 | 8519219 | Panel, Rear |
|
- | |||||
| 63 | WP692400 | Nut, Push-in (Replaces: 692400) |
|
Immediately | $ 7.22 | ||||
| 64 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 66 | W10470674 | Meteorite (Replaces: 280028) |
|
Immediately | $ 76.75 |
