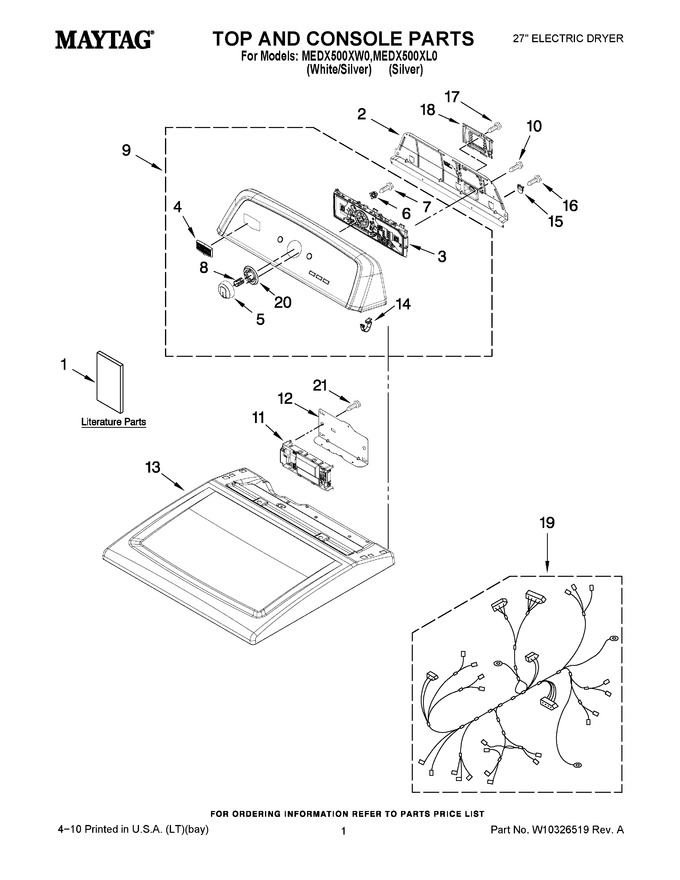

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097018		Tech Sheet		Appelez-nous	-
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10096988		Installation, Instruction		Appelez-nous	-
1	W10097013		Guide, Use & Care		Appelez-nous	-
2	W10096969		Panel, Rear Console				$ 178.02
3	WPW10272634		User Interface   (Replaces: W10272634)				$ 282.50
4	W10492808		Badge Assembly   (Replaces: W10323735)				$ 53.84
5	WPW10251381		Knob Assembly   (Replaces: W10251381)				$ 52.77
6	W10274524		Tensioner-fascia		Appelez-nous	-
7	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 7.36
8	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
9	W10293245		Console Assembly (silver)				$ 283.55
9	W10287062		Console Assembly (white)				$ 305.21
10	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
11	WPW10317638		Control, Electronic   (Replaces: W10303846)				$ 310.19
12	W10271580		Bracket, Motor Control		Appelez-nous	-
13	WPW10268730		Top (white)   (Replaces: W10268730)				$ 311.27
13	W10268731		Top (silver)				$ 132.83
14	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10279552		Plug, Rear Panel		Appelez-nous	-
16	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
18	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
19	W10253981		Harness, Electric		Appelez-nous	-
20	W10305134		Bezel, Cycle Trim				$ 23.73
21	WP33001882		Screw, 8-18 X 7/16   (Replaces: 337686)				$ 75.34

    View Diagram in Separate Window       Print Part List
