SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)

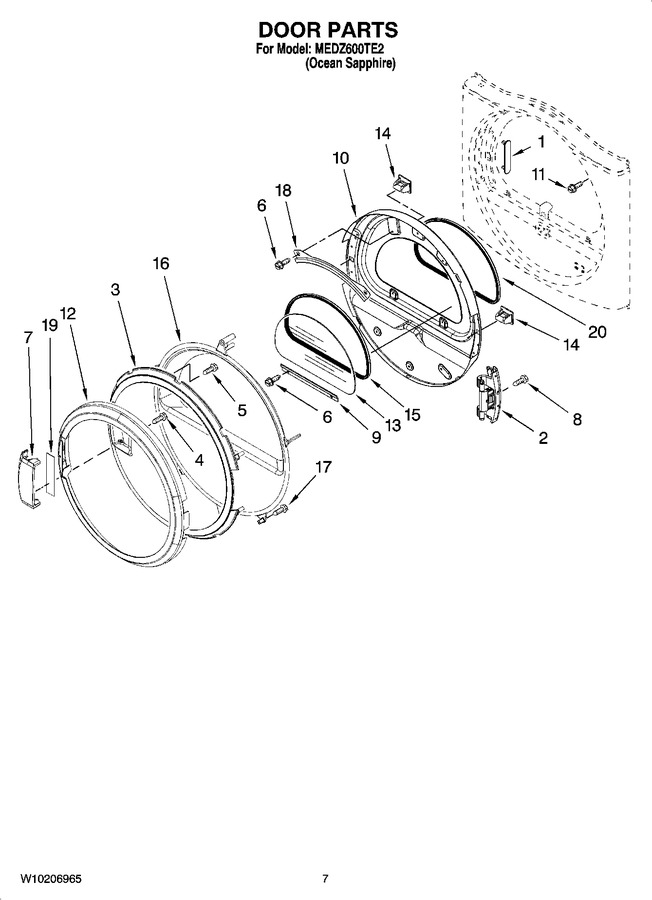

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Plug Strip (inner Door)				$ 88.49
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 209.23
3	W10119053		Door, Screen Intermediate Assy.				$ 201.38
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 6.80
5	3400618		Screw, 6-32 X 3/8				$ 61.15
6	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.67
7	W10112977		Handle, Door (includes Illus.19.)   (Replaces: W10117478)				$ 88.68
8	WPW10159996		Screw, 10-24 X 1/32   (Replaces: W10159996)				$ 7.67
9	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 16.21
10	WPW10164062		Door Assembly (inner) (includes Illus. 1 & 14 )   (Replaces: 8578933)				$ 318.66
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.63
12	W10112917		Door, Outer Ring				$ 154.76
13	WPW10286878		Window   (Replaces: 8565117)				$ 247.28
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.00
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 25.40
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 96.75
17	WP8534022		Screw   (Replaces: 8534022)				$ 7.53
18	8519356		Retainer (upper)		Appelez-nous	-
19	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 7.48
	W10202940		Paint, Touch-up (1/2oz.) (ocean Sapphire)				$ 17.39
	8212450A		Dry Rack   (Replaces: 8563738)			Immediately	$ 79.37
	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 36.11
	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 56.03
	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)			Immediately	$ 11.11
	8529894		Hold Down Kit		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
