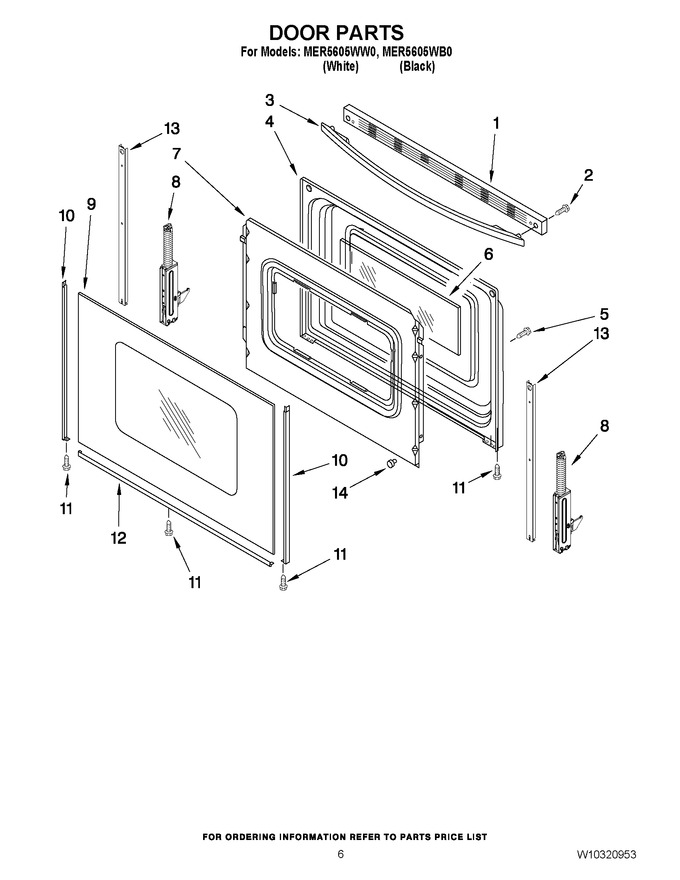

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10144869)			Immediately	$ 162.27
1	WPW10310922		Trim, Top (black)   (Replaces: W10144870)			Immediately	$ 157.83
2	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
3	W10111310		Handle, Door (black)		Appelez-nous	-
3	W10111309		Handle, Door (white)		Appelez-nous	-
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	WP8053948		Window, Inner   (Replaces: 9758162)			Immediately	$ 208.85
7	W11685635		Retainer, Insul.   (Replaces: 9761501)				$ 169.46
8	W10347465		Hinge, Door   (Replaces: 9761494)				$ 108.34
9	WPW10118454		Glass, Outer (white)   (Replaces: W10106404)				$ 292.42
9	W10106405		Glass, Outer (black)				$ 128.38
10	W10761018		Trim, Side (black Left Hand)   (Replaces: 8523171)			Immediately	$ 49.32
10	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 75.81
10	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 62.94
10	W10761014		Trim, Side (black Right Hand)   (Replaces: 8523165)			Immediately	$ 65.66
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
12	WP8523177		Trim, Lower (black)   (Replaces: 8523177)				$ 149.27
12	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 55.23
13	W11502236		Strap Door   (Replaces: W10113759)			Immediately	$ 24.91
14	238614		Bumper, Door   (Replaces: 3195809)				$ 76.31
