03 - Bulkhead


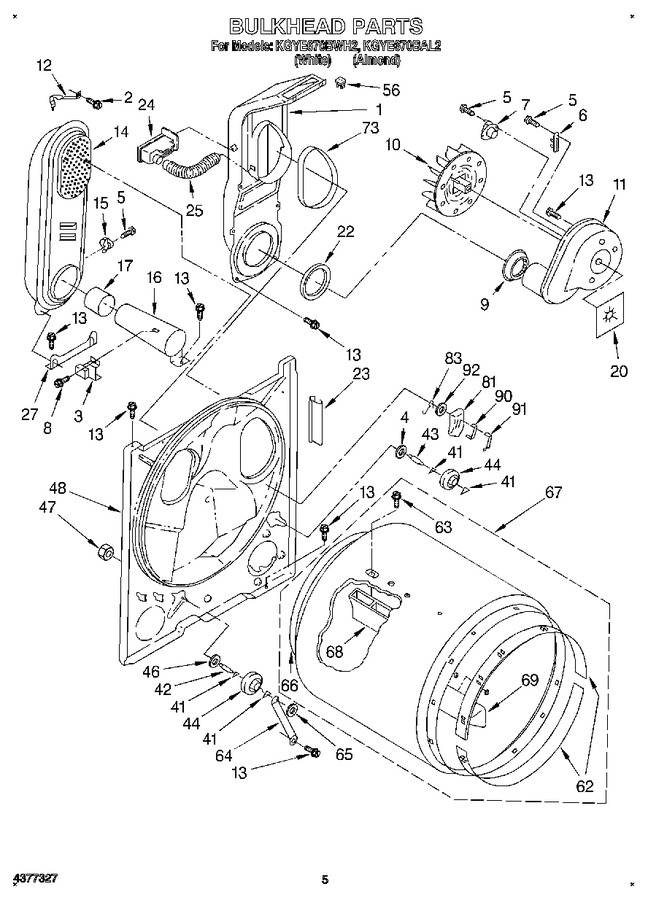

04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	686214		Lint Chute Assembly		Appelez-nous	-
2	WP489463		Screw, 8-18 X 3/4   (Replaces: 3400800)				$ 7.43
3	WP338906		Radiant, Sensor   (Replaces: 338906)			Immediately	$ 46.72
4	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.07
5	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
6	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 22.46
7	WP3387134		Thermostat, Internal Bias   (Replaces: 3387134)			Immediately	$ 32.31
8	WP3390631		Screw   (Replaces: 339554)				$ 7.43
9	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 21.06
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 33.89
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 3398161)				$ 13.55
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
14	279900		Box, Heater   (Replaces: 685458)				$ 325.42
15	660036		Thermostat, 205 F (96 C)		Appelez-nous	-
16	279900		Funnel, Burner   (Replaces: 347389)				$ 325.42
17	279900		Collar, Funnel   (Replaces: 348516)				$ 325.42
20	3392123		Seal, Blower		Appelez-nous	-
22	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 17.23
23	686889		Pad, Cabinet		Appelez-nous	-
24	690981		Alert, Lint		Appelez-nous	-
25	686577		Hose, Differential		Appelez-nous	-
27	348484		Support, Box		Appelez-nous	-
41	WPW10512946		Tri Ring (4)   (Replaces: 690997)			Immediately	$ 8.71
42	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 51.09
44	WPW10314173		Roller, Support   (Replaces: 3396802)			Immediately	$ 25.65
46	WP348197		Washer, Support   (Replaces: 348197)				$ 6.80
47	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 6.80
48	3396793		Bulkhead		Appelez-nous	-
56	98460		Nut, Push-in (2)				$ 12.07
62	279441		Ring, Bearing (2)   (Replaces: 692526)			Immediately	$ 66.11
63	WPW10109200		Screw, 11-16 X 7/8   (Replaces: 97787)			Immediately	$ 7.92
64	W11684613		Bracket, Shaft   (Replaces: 3394133)				$ 19.79
65	WP90296		Clip   (Replaces: 90296)				$ 7.42
66	279408		Seal, Rear   (Replaces: 347885)				$ 66.22
67	W10899578		Drum Assembly   (Replaces: 695587)				$ 337.98
68	WP692490		Baffle, Drum (long) (2)   (Replaces: 692490)				$ 150.51
69	WP3403636		Baffle, Drum (short) (1)   (Replaces: 692491)				$ 131.03
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.15
81	279366		Pad, Sensor   (Replaces: 348861)				$ 90.58
83	WP342267		Clip, Sensor (2)   (Replaces: 342267)				$ 7.33
90	WP348859		Electrode, Inside   (Replaces: 348859)				$ 7.54
91	WP348860		Electrode, Outside   (Replaces: 348860)				$ 7.61
92	WP298877		Washer, Insulating   (Replaces: 298877)				$ 21.34
