Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP74008763 Rack, Oven   (Replaces: 7801P175-60) Special Order $ 201.74

2 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 9.95

3 WP3405F037-80 Drawer, Storage   (Replaces: 3405F037-80) Special Order $ 320.23

4 W11347848 Screw, 8ab 1/2   (Replaces: 7101P376-60) Special Order $ 12.81

5 3605P337-51 Panel, Inner Special Order $ 48.45

6 W10165339 Panel, Drawer Special Order $ 110.52

7 8038P037-60 Stop, Drawer Appelez-nous -
8 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.81

9 3406P034-51 Runner, Drawer Special Order $ 33.42

10 7118P032-60 Shaft, Roller Appelez-nous -
11 WP74004078 Roller, Drawer   (Replaces: 8014P022-60) In-Stock Immediately $ 11.23

12 WP488130 Nut, Lock   (Replaces: 7103P082-60) Special Order $ 6.59

13 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 6.80

14 7701P547-60 Handle, Drawer Special Order $ 89.46


    View Diagram in Separate Window     Print Icon   Print Part List

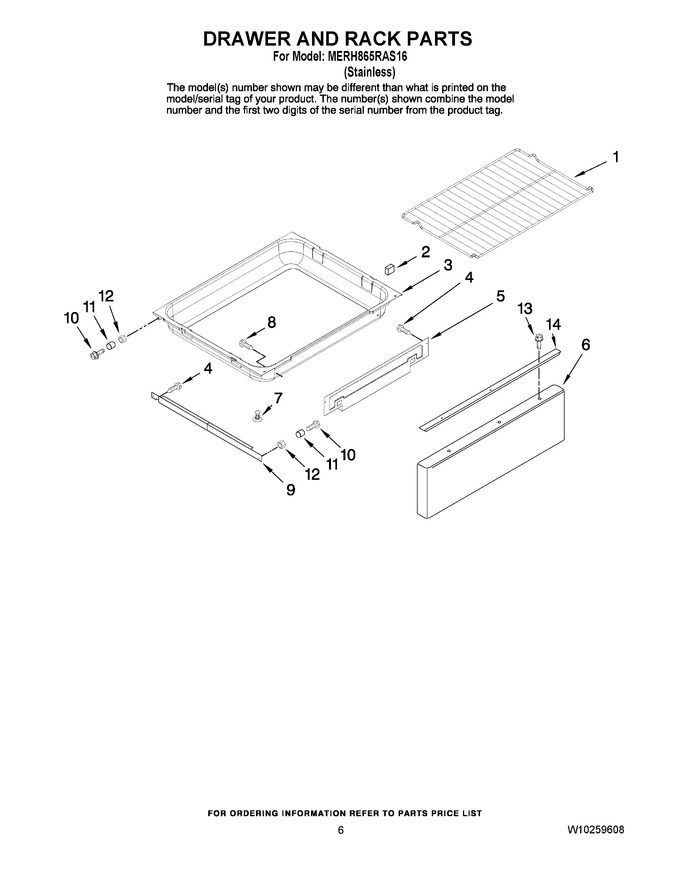

Diagram for MERH865RAS16
