Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP16123 Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123) Special Order $ 8.16

2 3952439 Mini-buzzer Appelez-nous -
3 WP89503 Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949368) In-Stock Immediately $ 24.09

3 WP89503 Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949369) In-Stock Immediately $ 24.09

4 WP3357027 Nozzle,   (Replaces: 3357027) Special Order $ 97.86

5 387402 Hinge, Console (2) Special Order $ 5.84

6 3357978 Panel, Rear Appelez-nous -
7 WP62747 Pad, Rear Panel   (Replaces: 62747) Special Order $ 27.57

8 285664 Hose, Drain (4 Ft.)   (Replaces: 3951609) In-Stock Immediately $ 42.09

8 285702 Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090) In-Stock Immediately $ 63.94

8 285666 Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577) In-Stock Immediately $ 108.98

9 3954733 Timer, Control (60 Hz.) (motor Not A Service Part) Special Order $ 176.05

10 285750 Kit, Adapter (includes Items 20 & 27) Appelez-nous -
11 WP90767 Screw, 8-18 X 3/8   (Replaces: 90767) In-Stock Immediately $ 8.25

12 W10339326 Switch, Water Level   (Replaces: 3366845) In-Stock Immediately $ 87.97

13 3950194 Bracket, Control Appelez-nous -
14 3353850 Cord, Power Appelez-nous -
15 3952821 Strain Relief, Power Cord Appelez-nous -
16 8271365 Cap, End (l.h.) (white) Appelez-nous -
16 8271368 Cap, End (l.h.) (biscuit) Appelez-nous -
17 WP3351614 Screw, 10-24 X 3/8   (Replaces: 3351614) In-Stock Immediately $ 7.30

18 285874 Valve, Water Mixing   (Replaces: 3952165) Special Order $ 213.86

19 WP3351614 Screw, 10-24 X 1/2   (Replaces: 90864) In-Stock Immediately $ 7.30

20 3363920A Adapter-drain Hose   (Replaces: 3363920) Special Order $ 9.23

21 WP596669 Clamp, Hose   (Replaces: 370451) In-Stock Immediately $ 8.82

22 WP3357328 Hose, Vacuum Break   (Replaces: 3357328) In-Stock Immediately $ 24.78

23 WP596669 Clamp, Hose   (Replaces: 371503) In-Stock Immediately $ 8.82

24 WP3360977 Break, Vacuum   (Replaces: 387606) In-Stock Immediately $ 50.46

25 WP8519200 Support, Rear Panel   (Replaces: 8519200) In-Stock Immediately $ 19.85

26 WPW10358149 Drain Hose, Corrugated   (Replaces: 3361805) In-Stock Immediately $ 48.16

27 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 8.52

28 WP9740848 Screw, 8-18 X 1/2   (Replaces: 9740848) In-Stock Immediately $ 8.58

30 WP616099 Clamp, Hose   (Replaces: 3363366) In-Stock Immediately $ 8.58

31 WP285655 Clamp, Hose   (Replaces: 660628) In-Stock Immediately $ 8.81

32 285871 Hose, Pump To Tub   (Replaces: 3951449) In-Stock Immediately $ 28.99

36 W10915367 Screw, Timer Mounting   (Replaces: 3400808) Appelez-nous -
37 WP3400064 Screw   (Replaces: 3400064) Special Order $ 7.30

39 8318791 Panel, Console (white) Appelez-nous -
39 8318792 Panel, Console (biscuit) Appelez-nous -
40 8055003 Clip, Harness & Pressure Hose Special Order $ 36.24

41 W10113937 Clip, Grounding   (Replaces: 357572) Special Order $ 11.37

42 3398893 Wire, Ground Appelez-nous -
44 WP3957822 Knob, Timer (biscuit)   (Replaces: 8271347) In-Stock Immediately $ 56.08

44 W10807860 Knob, Timer (white)   (Replaces: 8271345) In-Stock Immediately $ 52.47

45 8271370 Dial, Timer (biscuit) Appelez-nous -
45 WP3957849 Dial, Timer (white)   (Replaces: 8271351) Special Order $ 48.07

47 WP3957799 Knob, Control (white)   (Replaces: 8271339) Special Order $ 55.06

47 3957797 Knob, Control (biscuit)   (Replaces: 8271348) Special Order $ 52.92

49 WP388326 Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326) Special Order $ 9.29

50 WP3390631 Screw, 10-16 X 3/8   (Replaces: 62863) Special Order $ 8.25

51 8271359 Cap, End (r.h.) (white) Appelez-nous -
51 8271362 Cap, End (r.h.) (biscuit) Appelez-nous -
52 8316032 Switch, Clean Touch (7 Pad) (biscuit) Appelez-nous -
52 8318475 Switch, Clean Touch (7 Pad) (white) Appelez-nous -
55 WP488729 Screw, 8-18 X 1/2 10-16 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

58 WP3357331 Clamp, Hose   (Replaces: 3366913) Special Order $ 8.19

59 3348424 Shield, Suds Appelez-nous -
60 3954785 Harness, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

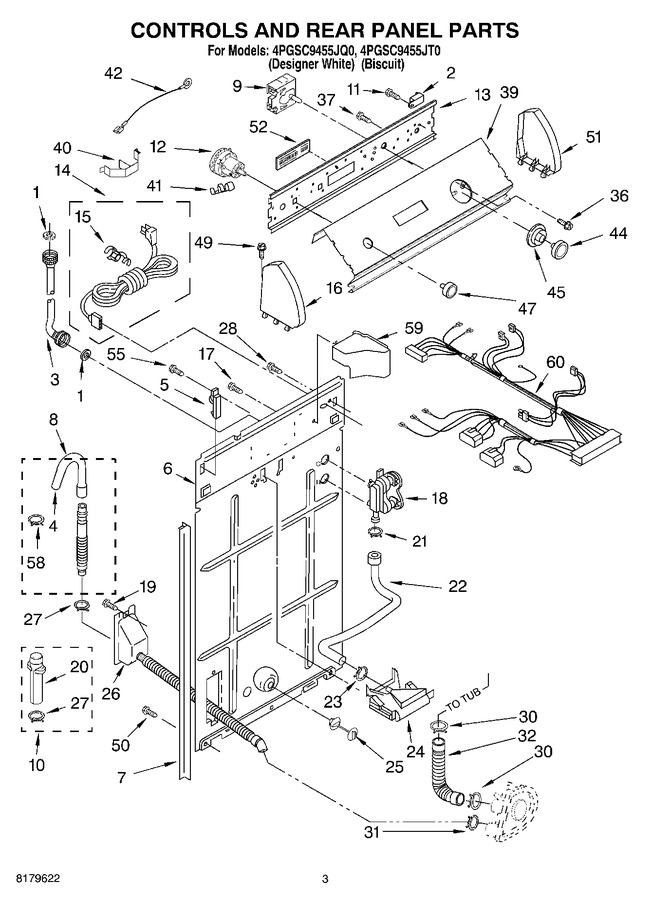

Diagram for 4PGSC9455JQ0
