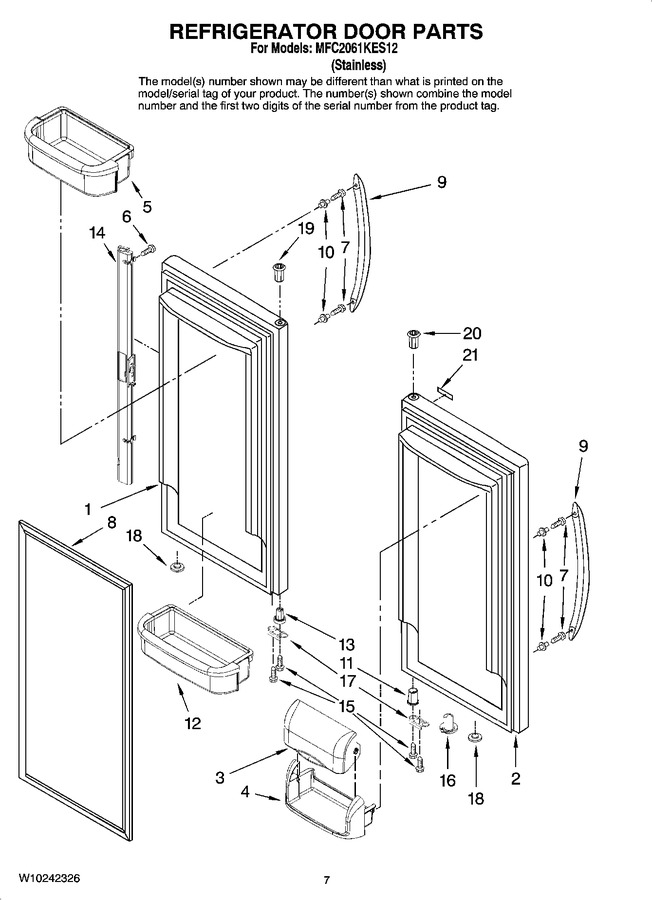

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024038SQ		Door, Left (stainless)				$ 421.73
2	13024037SQ		Door, Right (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	67004040		Bin, Shelf (3)				$ 86.39
6	W11311945		Screw   (Replaces: 67006786)				$ 13.25
7	WP3387230		Screw, Handle   (Replaces: 67002935)			Immediately	$ 7.69
8	W11368721		Gasket, Door (2) (black)   (Replaces: 12723206B)			Immediately	$ 184.78
9	W11690159		Handle (stainless)   (Replaces: W10136871)				$ 156.38
10	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.30
11	WP67002731		Bushing, Door (bottom-right) (black)   (Replaces: 67002731)			Immediately	$ 7.42
12	67004641		Bin, Shelf (2)				$ 45.66
13	WP67002721		Bushing, Door (bottom-left) (black)   (Replaces: 67002721)			Immediately	$ 7.43
14	WP12722803B		Mullion, Door (black)   (Replaces: 67004131)				$ 220.83
15	WP98165		Screw   (Replaces: 67006287)				$ 7.71
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 81.29
17	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 13.28
18	67004838		Plug, Button (black)				$ 10.09
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door (upper Right) (black)				$ 19.89
21	2324038		Nameplate   (Replaces: 67006439)				$ 64.43
